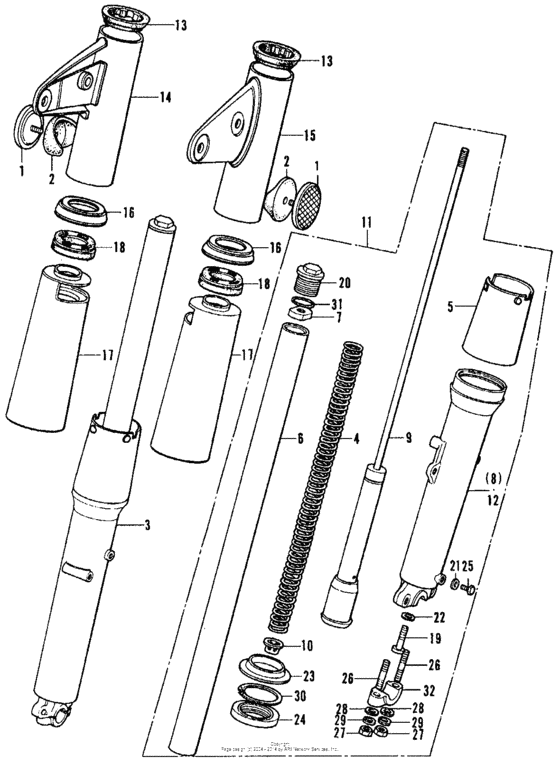

Cb front fork k4 Diagram Honda CB350
- Model code
- CB350K4 A
- Sales region
- USA
- Frame
- CB3504000001 -
- Engine Capacity
- 350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33741-340-670 Reflector,reflex |
33741-340-670 |
US $34.15 |
||
| replacement | |||||
|
1
|
1
33741-102-870 Reflector, fr. |
33741-102-870 |
from US $28.70 |
||
|
2
|
2
33743-341-670 Base,fr reflex |
33743-341-670 |
from US $5.66 |
||
|
3
|
3
51400-344-670
Fork assy., r. fr.
|
51400-344-670 |
— | ||
|
4
|
4
51401-317-701
Spring,fr cushion
|
51401-317-701 |
— | ||
|
5
|
5
51402-333-000
Cover,bottom case
Use from Frame SN 4102945 |
51402-333-000 |
— | ||
|
6
|
6
51410-317-700
Pipe,front fork
|
51410-317-700 |
— | ||
|
7
|
7
51413-317-700
Nut,lock
|
51413-317-700 |
— | ||
|
8
|
8
51421-333-000
Case,r.fork bot.
Use from Frame SN 4102945 |
51421-333-000 |
— | ||
|
9
|
9
51430-344-000
Damper comp
Use from Frame SN 4102945 |
51430-344-000 |
— | ||
|
10
|
10
51461-317-701
Seat,cushion spg.
|
51461-317-701 |
— | ||
|
11
|
11
51500-344-670
Fork assy., l. fr.
|
51500-344-670 |
— | ||
|
12
|
12
51521-333-000
Case,l.fork bot.
Use from Frame SN 4102945 |
51521-333-000 |
— | ||
|
13
|
13
51601-317-700
Cushion a,cover
|
51601-317-700 |
— | ||
|
14
|
14
51602-344-670HX
Cover,r fr.fork
|
51602-344-670HX |
— | ||
|
14
|
14
51602-344-670LX
Cover,r fr.fork
|
51602-344-670LX |
— | ||
|
14
|
14
51602-344-670LY
Cover,r fr.fork
|
51602-344-670LY |
— | ||
|
14
|
14
51602-344-670MT
Cover,r.fr.fork
|
51602-344-670MT |
— | ||
|
14
|
14
51602-344-670-Z
Cover,r fr.fork
|
51602-344-670-Z |
— | ||
|
15
|
15
51606-344-670HX
Cover, l. fr. *r25*
|
51606-344-670HX |
— | ||
|
15
|
15
51606-344-670LX
Cover,l fr.fork
|
51606-344-670LX |
— | ||
|
15
|
15
51606-344-670LY Cover,l fr.fork |
51606-344-670LY |
US $73.39 |
||
|
15
|
15
51606-344-670MT
Cover,l.fr.fork
|
51606-344-670MT |
— | ||
|
15
|
15
51606-344-670-Z
Cover,l fr.fork
|
51606-344-670-Z |
— | ||
|
16
|
16
51608-286-010
Rib,front fork
|
51608-286-010 |
— | ||
|
17
|
17
51611-344-670HX
Cover,un.fr.fork
|
51611-344-670HX |
— | ||
|
17
|
17
51611-344-670LX
Cover,un.fr.fork
|
51611-344-670LX |
— | ||
|
17
|
17
51611-344-670LY
Cover,un.fr.fork
|
51611-344-670LY |
— | ||
|
17
|
17
51611-344-670MT
Cvr, fr. fork *r27*
|
51611-344-670MT |
— | ||
|
17
|
17
51611-344-670-Z
Cover,un.fr.fork
|
51611-344-670-Z |
— | ||
|
18
|
18
51622-286-010
Cushion,forkcover
|
51622-286-010 |
— | ||
|
19
|
19
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
20
|
20
90123-317-700
Bolt,front fork
|
90123-317-700 |
— | ||
|
21
|
21
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
22
|
22
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $1.40 |
||
|
23
|
23
91254-333-010
Dust seal,334710
Use from Frame SN 4102945 |
91254-333-010 |
— | ||
|
24
|
24
91255-312-003 Oil,seal |
91255-312-003 |
from US $14.42 |
||
|
25
|
25
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
26
|
26
92900-08028-3B Bolt, stud (8x50) |
92900-08028-3B |
from US $0.74 |
||
|
27
|
27
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
28
|
28
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
29
|
29
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
30
|
30
9452147000 Circlip, internal, 47mm |
9452147000 |
from US $1.63 |
||
|
31
|
31
9460830000 O-ring (23x2.4) |
9460830000 |
from US $0.89 |
||
|
32
|
32
95014-41000 Holder,axle |
95014-41000 |
from US $7.70 |
||
