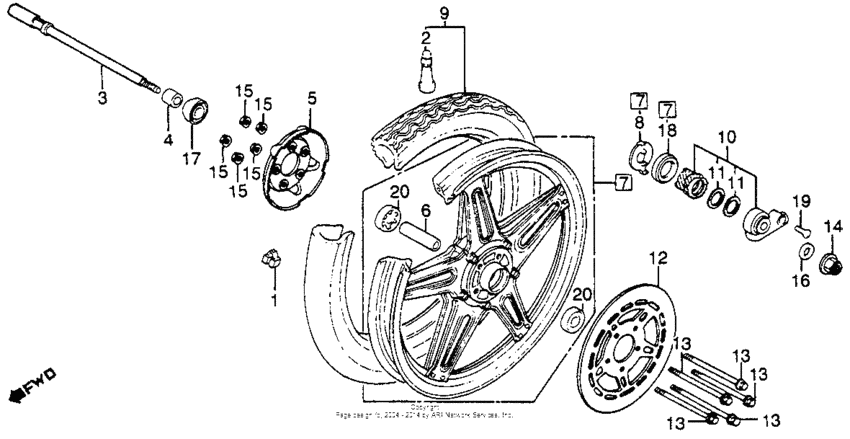

Front wheel 82 Diagram Honda CB450
- Year
- 1982
- Model code
- CB450SC A
- Sales region
- USA
- Frame
- JH2PC054*CM000015 - JH2PC054*CM019266
- Engine Capacity
- 450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42705-410-000
Balancer (20g)
|
42705-410-000 |
— | ||
|
1
|
1
42706-410-000 Ballance (30g) |
42706-410-000 |
US $13.43 |
||
|
2
|
2
42753-425-003 Valve, rim |
42753-425-003 |
from US $13.17 |
||
|
3
|
3
44301-MC9-670
Axle,fr.wheel
|
44301-MC9-670 |
— | ||
|
4
|
4
44311-413-000
Collar.fr.wheel
|
44311-413-000 |
— | ||
|
5
|
5
44607-449-000
Cover fr wheel
|
44607-449-000 |
— | ||
|
6
|
6
44620-286-000
Collar,distance
|
44620-286-000 |
— | ||
|
7
|
7
44650-413-940
Wheel comp.,fr.
|
44650-413-940 |
— | ||
|
8
|
8
44680-410-000 Retainer, gear box |
44680-410-000 |
from US $4.48 |
||
|
9
|
9
44710-MC9-671
Tire (3.50s19) (4pr)
|
44710-MC9-671 |
— | ||
|
9
|
9
44710-MC9-672
Tire (3.25s19) (4pr)
|
44710-MC9-672 |
— | ||
|
10
|
10
44800-449-003
Box.spdmt gear
|
44800-449-003 |
— | ||
|
11
|
11
44809-402-000 Washer |
44809-402-000 |
from US $2.89 |
||
|
12
|
12
45251-413-941
Disk,fr.brake
|
45251-413-941 |
— | ||
|
13
|
13
90156-MC9-670 Bolt, flange, 8x87 |
90156-MC9-670 |
US $6.02 |
||
|
14
|
14
90305-GE8-003 Nut, u (14mm) |
90305-GE8-003 |
from US $3.40 |
||
|
15
|
15
90308-460-841 Nut,flange,8mm |
90308-460-841 |
from US $4.95 |
||
|
15
|
15
90309-MR1-770 Nut, flange, 8mm |
90309-MR1-770 |
from US $4 |
||
|
16
|
16
90557-230-000 Washer (15.2x25) |
90557-230-000 |
from US $3.03 |
||
|
17
|
17
91252-230-003 Oil seal (26x42x7) |
91252-230-003 |
from US $9.92 |
||
|
18
|
18
91258-410-013 Dust seal (40x50x5) |
91258-410-013 |
from US $8.73 |
||
|
19
|
19
93700-050160G Screw, oval (5x16) |
93700-050160G |
from US $0.37 |
||
|
20
|
20
96120-630-201-0 B/brg rad n/com |
96120-630-201-0 |
US $6.81 |
