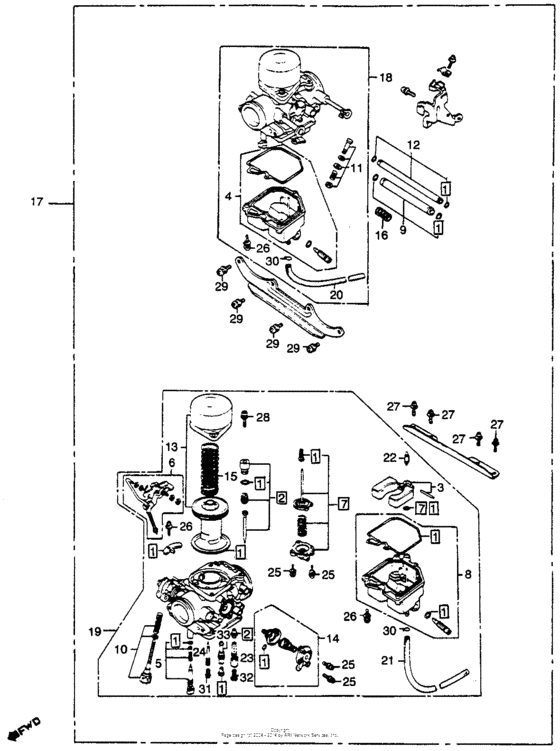

Carburetor Diagram Honda CB450
- Year
- 1982
- Model code
- CB450T A
- Sales region
- USA
- Frame
- JH2PC050*CM000001 -
- Engine Capacity
- 450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-413-405 Packing set |
16010-413-405 |
from US $40.70 |
||
|
2
|
2
16012-413-751
Needle set,jet
|
16012-413-751 |
— | ||
|
3
|
3
16013-413-851 Float set |
16013-413-851 |
from US $62.02 |
||
|
4
|
4
16015-425-871
Chamber set a
|
16015-425-871 |
— | ||
|
5
|
5
16016-KC2-970 Screw set A |
16016-KC2-970 |
from US $15.10 |
||
|
6
|
6
16019-413-751
Rod set,pump
|
16019-413-751 |
— | ||
|
7
|
7
16021-438-671
Diaph.set,pump
|
16021-438-671 |
— | ||
|
8
|
8
16023-425-871
Chamber set b
|
16023-425-871 |
— | ||
|
9
|
9
16026-413-004
Joint set,fuel
|
16026-413-004 |
— | ||
|
10
|
10
16028-425-671
Screw set b
|
16028-425-671 |
— | ||
|
11
|
11
16029-PC6-005
Screw set
|
16029-PC6-005 |
— | ||
|
12
|
12
16037-443-851
Joint set, fuel
|
16037-443-851 |
— | ||
|
13
|
13
16044-425-771
Piston set,vacuum
|
16044-425-771 |
— | ||
|
14
|
14
16048-443-901 Valve set, air cut |
16048-443-901 |
US $118.32 |
||
|
15
|
15
16050-448-004
Spring,vac.piston
|
16050-448-004 |
— | ||
|
16
|
16
16051-413-004
Spg,comprn.coil
|
16051-413-004 |
— | ||
|
17
|
17
16100-ME0-004
Carburetor assy.
|
16100-ME0-004 |
— | ||
|
18
|
18
16101-ME0-004
Carburetor assy., r.
|
16101-ME0-004 |
— | ||
|
19
|
19
16102-ME0-004
Carburetor assy., l.
|
16102-ME0-004 |
— | ||
|
20
|
20
16199-KG4-405 Tube |
16199-KG4-405 |
from US $8.88 |
||
|
21
|
21
16199-MN5-405 Tube, fuel |
16199-MN5-405 |
from US $3.70 |
||
|
22
|
22
16155-413-751 Valve, float |
16155-413-751 |
from US $25.16 |
||
|
23
|
23
16165-417-004 Holder, needle jet |
16165-417-004 |
from US $26.04 |
||
|
24
|
24
16166-447-671
Nozzle,main
|
16166-447-671 |
— | ||
|
25
|
25
93892-040-120-0 Screw-washer4X12 |
93892-040-120-0 |
from US $0.44 |
||
|
26
|
26
93892-0401600 Screw-washer (4x16) |
93892-0401600 |
from US $0.44 |
||
|
27
|
27
93892-050-120-0 Screw-washer5X12 |
93892-050-120-0 |
from US $0.44 |
||
|
28
|
28
93892-0501600 Screw-washer, 5x16 |
93892-0501600 |
from US $0.44 |
||
|
29
|
29
93892-060-140-0 Screw-washer,6x14 |
93892-060-140-0 |
from US $0.52 |
||
|
30
|
30
9500202650 Clip, tube (b6.5) |
9500202650 |
US $2.11 |
||
|
31
|
31
99101-166-0700 Jet,main,#70 |
99101-166-0700 |
US $4.44 |
||
|
32
|
32
99101-GHB-1080 Jet, main (#108) |
99101-GHB-1080 |
from US $5.33 |
||
| replacement | |||||
|
32
|
32
99101-MAZ1080 Jet, main (#108) |
99101-MAZ1080 |
from US $5.33 |
||
|
33
|
33
99103-4200380 Jet, slow (#38) |
99103-4200380 |
from US $6.51 |
||
