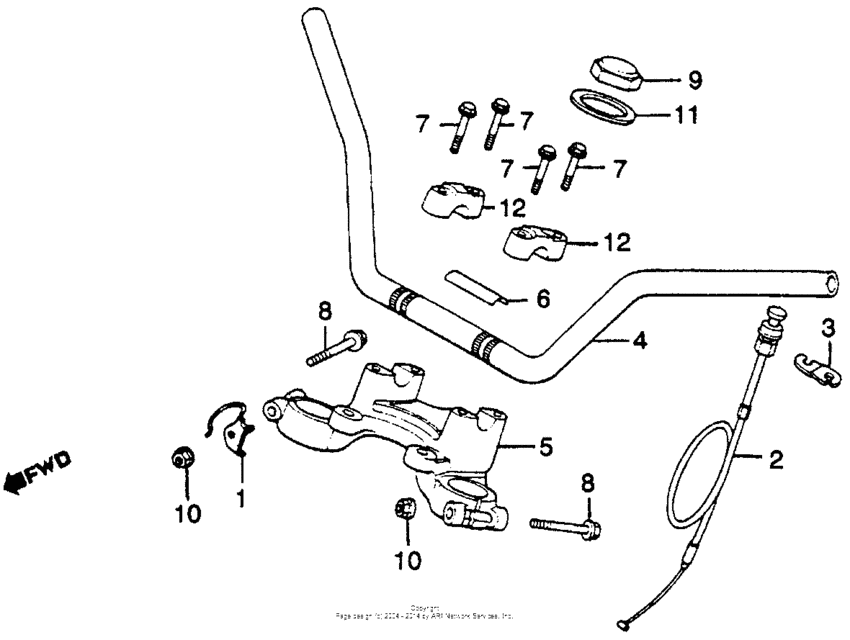

Handlebar + top bridge Diagram Honda CB450
- Year
- 1982
- Model code
- CB450T A
- Sales region
- USA
- Frame
- JH2PC050*CM000001 -
- Engine Capacity
- 450
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17908-413-940
Guide, cable
|
17908-413-940 |
— | ||
|
2
|
2
17950-448-000
Cable comp.,choke
|
17950-448-000 |
— | ||
|
3
|
3
17951-413-940
Bracket, choke cable
|
17951-413-940 |
— | ||
|
4
|
4
53100-413-940
Handlebar
|
53100-413-940 |
— | ||
|
5
|
5
53230-413-940
Bridge, fork top
|
53230-413-940 |
— | ||
|
6
|
6
87517-447-730
Label, fr.
|
87517-447-730 |
— | ||
|
7
|
7
90111-362-000 Bolt, flange (8x36) |
90111-362-000 |
from US $4.44 |
||
|
8
|
8
90155-369-000 Bolt,flange,7x54 |
90155-369-000 |
from US $6.81 |
||
|
9
|
9
90304-415-000 Nut, steering stem |
90304-415-000 |
from US $11.97 |
||
|
10
|
10
90355-369-000 Nut, flange, 7mm |
90355-369-000 |
from US $5.33 |
||
|
11
|
11
90503-283-000 Washer |
90503-283-000 |
from US $3.85 |
||
|
12
|
12
9501422200 Holder b2, handlebar |
9501422200 |
from US $7.70 |
