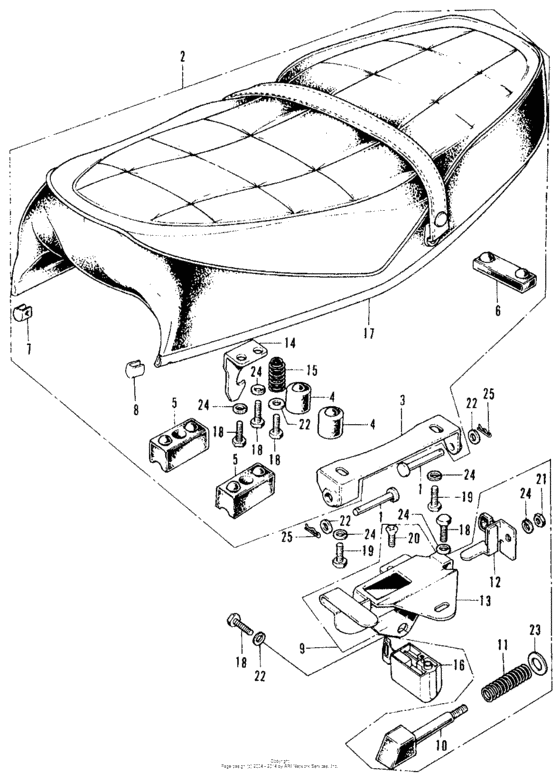

Cb500 seat Diagram Honda CB500 CB500
- Model code
- CB500 A
- Sales region
- USA
- Frame
- CB5001000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77103-313-000
Bar,seat.hinge
|
77103-313-000 |
— | ||
|
2
|
2
77200-323-030-A
Seat,double
|
77200-323-030-A |
— | ||
|
3
|
3
77201-323-010
Hinge, seat
|
77201-323-010 |
— | ||
|
4
|
4
77204-286-020 Rubber,seat sett. |
77204-286-020 |
from US $6.22 |
||
|
5
|
5
77204-292-000 Rubber, seat setting |
77204-292-000 |
from US $6.81 |
||
|
6
|
6
77204-312-000 Rubber, seat setting |
77204-312-000 |
from US $4.74 |
||
|
7
|
7
77211-323-300
Garnish,r.seat
|
77211-323-300 |
— | ||
|
8
|
8
77212-323-300
Garnish,l.seat
|
77212-323-300 |
— | ||
|
9
|
9
77230-323-020
Catch assy.,seat
|
77230-323-020 |
— | ||
|
10
|
10
77231-317-670
Slider,seat catch
|
77231-317-670 |
— | ||
|
11
|
11
77232-300-000
Spring seat catch
|
77232-300-000 |
— | ||
|
12
|
12
77233-323-010
Lever,seat catch
|
77233-323-010 |
— | ||
|
13
|
13
77234-323-030
Plate,seat catch
|
77234-323-030 |
— | ||
|
14
|
14
77235-323-000
Hook,seat catch
|
77235-323-000 |
— | ||
|
15
|
15
77244-300-000
Spring,seat.rift
|
77244-300-000 |
— | ||
|
16
|
16
53600-086-007 Lock, handlebar |
53600-086-007 |
from US $26.38 |
||
|
17
|
17
77270-323-003
Top coat set
|
77270-323-003 |
— | ||
|
18
|
18
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
18
|
18
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
18
|
18
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
19
|
19
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
20
|
20
93600-060-100-A ScrewFLAT, 6X10 |
93600-060-100-A |
from US $0.44 |
||
|
21
|
21
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
22
|
22
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
23
|
23
94102-08000 Washer, plain, 8mm |
94102-08000 |
from US $0.37 |
||
|
24
|
24
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
25
|
25
94251-06000 PinLOCK, 6MM |
94251-06000 |
from US $0.44 |
||
