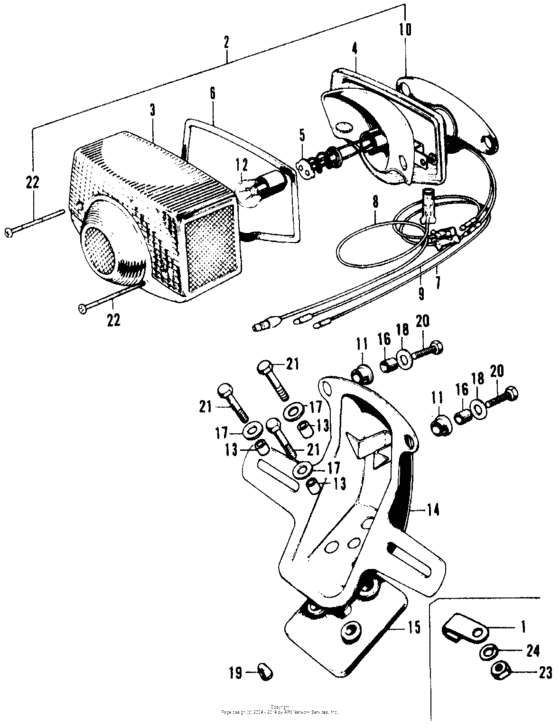

Cb500 taillight Diagram Honda CB500 CB500
- Model code
- CB500 A
- Sales region
- USA
- Frame
- CB5001000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32111-323-000 Clamp, cable |
32111-323-000 |
from US $5.18 |
||
|
2
|
2
33701-300-671
Tail light unit
|
33701-300-671 |
— | ||
|
3
|
3
33702-077-671 Lens,tail-light |
33702-077-671 |
from US $41.07 |
||
|
4
|
4
33703-077-671 Base,taillight |
33703-077-671 |
from US $47.87 |
||
|
5
|
5
33708-077-671 Tial-light,cord |
33708-077-671 |
US $9.32 |
||
|
6
|
6
33709-077-671 Packing lens |
33709-077-671 |
from US $2.74 |
||
|
7
|
7
33711-323-000
Cord,tail light
|
33711-323-000 |
— | ||
|
8
|
8
33712-300-003
Cord tail light
|
33712-300-003 |
— | ||
|
9
|
9
33713-323-000
Cord,tail light
|
33713-323-000 |
— | ||
|
10
|
10
33718-077-671
Base,tail,packing
|
33718-077-671 |
— | ||
|
11
|
11
33719-077-671 Packing,tail,ba,b |
33719-077-671 |
from US $2.14 |
||
|
12
|
12
34906-313-671 Bulb (12v23/8w) |
34906-313-671 |
from US $3.85 |
||
|
12
|
12
34901-504-003 Pilot lump bulb |
34901-504-003 |
US $57.50 |
||
|
13
|
13
80108-061-010 Collar a, rr. fender |
80108-061-010 |
from US $3.40 |
||
|
14
|
14
84701-300-672XW
Bracket,num.plate
|
84701-300-672XW |
— | ||
|
15
|
15
84702-300-010
Seat,num.bracket
|
84702-300-010 |
— | ||
|
16
|
16
84706-286-000 Collar no bracket |
84706-286-000 |
from US $2.74 |
||
|
17
|
17
90581-831-650 Washer (18mm) |
90581-831-650 |
from US $1.55 |
||
|
18
|
18
90581-831-650 Washer (18mm) |
90581-831-650 |
from US $1.55 |
||
|
19
|
19
90899-283-000 Plug, cone |
90899-283-000 |
from US $2.59 |
||
|
20
|
20
92101-05020-0B Bolt, hex. (5x20) |
92101-05020-0B |
US $0.52 |
||
|
21
|
21
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
22
|
22
93500-040-504-J Screw cross 4x50 |
93500-040-504-J |
US $0.81 |
||
|
23
|
23
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
24
|
24
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
