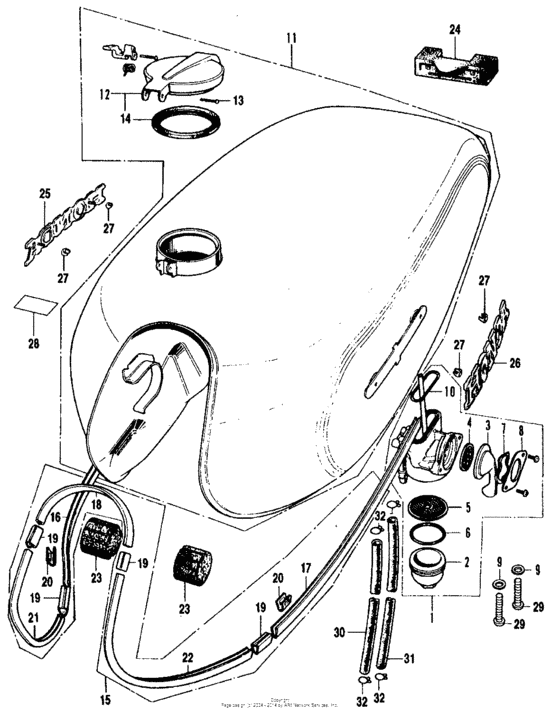

Fuel tank + fuel valve Diagram Honda CB500 CB500
- Model code
- CB500 A
- Sales region
- USA
- Frame
- CB5001000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-300-020 Cock.fuel,cb750 |
16950-300-020 |
from US $89.08 |
||
|
2
|
2
16952-268-000 Cup |
16952-268-000 |
US $13.66 |
||
|
3
|
3
16953-268-020
Lever, fuel cock
|
16953-268-020 |
— | ||
|
4
|
4
16955-268-020 Gasket, cock valve |
16955-268-020 |
from US $7.79 |
||
|
5
|
5
16957-268-010 Screen |
16957-268-010 |
from US $13.09 |
||
|
6
|
6
16958-268-010 Packing |
16958-268-010 |
from US $6.51 |
||
|
7
|
7
16960-268-010 Spring |
16960-268-010 |
US $7.25 |
||
|
8
|
8
16961-268-010
Plate
|
16961-268-010 |
— | ||
|
9
|
9
16993-011-000 Placking |
16993-011-000 |
US $7.70 |
||
|
10
|
10
16997-273-006 Oring,23mm |
16997-273-006 |
from US $6.67 |
||
|
11
|
11
17050-323-000KF
Tank assy., fuel
|
17050-323-000KF |
— | ||
|
11
|
11
17050-323-000KD
Tank assy., fuel
|
17050-323-000KD |
— | ||
|
11
|
11
17050-323-000KE
Tank assy., fuel
|
17050-323-000KE |
— | ||
|
12
|
12
17510-323-310 Cap,fuel tank |
17510-323-310 |
US $68.29 |
||
|
13
|
13
17514-323-300
Pin b,fuel cap
|
17514-323-300 |
— | ||
|
14
|
14
17534-323-300 Packing,fuel cap |
17534-323-300 |
from US $11.37 |
||
|
15
|
15
17540-323-000
Mole set,fuel
|
17540-323-000 |
— | ||
|
16
|
16
17541-323-000
Mole,r fuel tank
|
17541-323-000 |
— | ||
|
17
|
17
17542-323-000
Mole,l fuel tank
|
17542-323-000 |
— | ||
|
18
|
18
17543-323-000
Mole,tank middle
|
17543-323-000 |
— | ||
|
19
|
19
17544-323-000
Clip a,tank mole
|
17544-323-000 |
— | ||
|
20
|
20
17545-323-010 Clip b,tank moleUse up to Frame SN 1009593 |
17545-323-010 |
from US $2.48 |
||
|
21
|
21
17548-323-000
Moul,r.middletank
|
17548-323-000 |
— | ||
|
22
|
22
17549-323-000
Moul,l.middletank
|
17549-323-000 |
— | ||
|
22
|
22
17550-377-315 Check assy.,cap |
17550-377-315 |
US $68.68 |
||
|
23
|
23
17611-283-010 Cushion, tank |
17611-283-010 |
from US $10.15 |
||
|
24
|
24
17613-286-000 Cushion,fuel tank |
17613-286-000 |
from US $19.16 |
||
|
25
|
25
87121-300-030 Emblem,r.tank |
87121-300-030 |
from US $40.39 |
||
|
26
|
26
87121-300-030 Emblem,r.tank |
87121-300-030 |
from US $40.39 |
||
|
27
|
27
87311-516-000
Nut,rear ornament
|
87311-516-000 |
— | ||
| replacement | |||||
|
27
|
27
87311-634-600 Nut emblem |
87311-634-600 |
from US $2.59 |
||
|
27
|
27
87311-634-600 Nut emblem |
87311-634-600 |
from US $2.59 |
||
|
28
|
28
87560-323-670-A Mark,caution |
87560-323-670-A |
from US $4 |
||
|
28
|
28
87560-323-670ZA Mark,drive c*nh1* |
87560-323-670ZA |
from US $4.06 |
||
|
29
|
29
93500-060-320-A ScrewPAN, 6X32 |
93500-060-320-A |
from US $0.58 |
||
|
30
|
30
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $23.04 |
||
|
31
|
31
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $23.04 |
||
|
32
|
32
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
