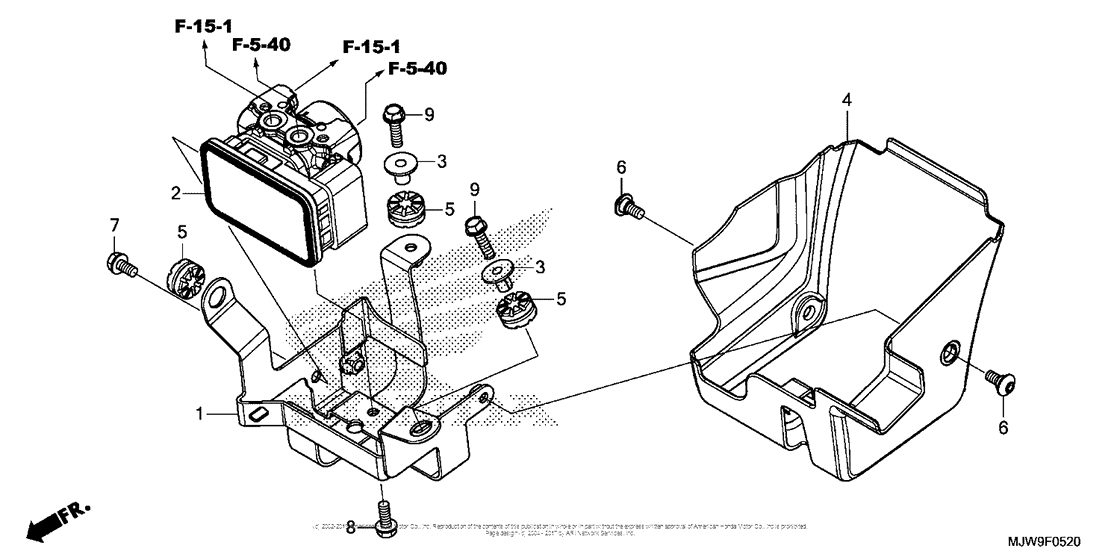

Abs Modulator Diagram Honda CB500
- Year
- 2016
- Model code
- CB500FA AC
- Sales region
- USA
- Frame
- MLHPC450 - G5300001
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50345-MGZ-J10 Stay, abs modulator |
50345-MGZ-J10 |
US $56.66 |
||
|
2
|
2
57110-MGZ-J12 New Genuine Part |
57110-MGZ-J12 |
from US $1,151.92 |
||
|
3
|
3
61102-KTY-D30 Collar |
61102-KTY-D30 |
from US $3.40 |
||
|
4
|
4
61410-MJW-J00 COVER, ABS MODULATOR |
61410-MJW-J00 |
from US $11.12 |
||
|
5
|
5
77208-KW7-900 Rubber b |
77208-KW7-900 |
from US $2.74 |
||
|
6
|
6
90115-MGZ-J00 Screw (6x14) |
90115-MGZ-J00 |
from US $1.51 |
||
|
7
|
7
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
8
|
8
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
||
|
9
|
9
95701-0602200 Bolt, flange, 6x22 |
95701-0602200 |
from US $0.59 |
