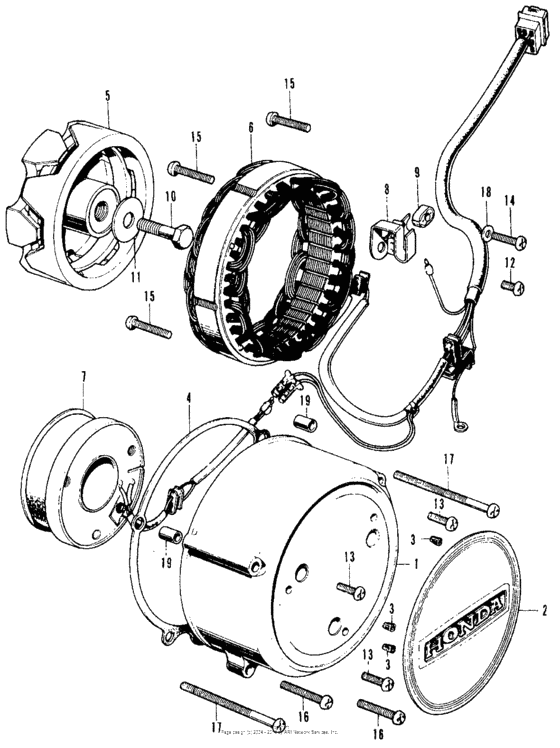

Alternator Diagram Honda CB500 CB500
- Model code
- CB500K1 A
- Sales region
- USA
- Frame
- CB5002000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11631-323-000
Cover a, alternator
|
11631-323-000 |
— | ||
|
2
|
2
11632-323-003 Cover b, alternator |
11632-323-003 |
US $73.93 |
||
|
3
|
3
11633-323-000 Clip, push |
11633-323-000 |
from US $2.96 |
||
|
4
|
4
11691-323-306
Gasket
|
11691-323-306 |
— | ||
|
5
|
5
31101-404-831
Rotor comp
|
31101-404-831 |
— | ||
|
6
|
6
31102-323-025
Stator Comp
|
31102-323-025 |
— | ||
|
7
|
7
31103-390-005 Coil comp.,field |
31103-390-005 |
US $329.78 |
||
|
8
|
8
35752-323-000
Stator,neutral sw
|
35752-323-000 |
— | ||
|
9
|
9
35753-323-000
Rotor,neutral sw
|
35753-323-000 |
— | ||
|
10
|
10
90014-333-003
Bolt,ubs,10x32
Use up to Engine SN 2034711 |
90014-333-003 |
— | ||
|
11
|
11
90401-880-000 Washer, 10x30x3.5tUse up to Engine SN 2034711 |
90401-880-000 |
US $9.98 |
||
|
12
|
12
93500-060-120-A ScrewPAN, 6X12 |
93500-060-120-A |
from US $0.44 |
||
|
13
|
13
93500-060-160-A ScrewPAN, 6X16 |
93500-060-160-A |
from US $0.44 |
||
|
14
|
14
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
15
|
15
93500-060280A Screw, pan, 6x28 |
93500-060280A |
from US $0.52 |
||
|
16
|
16
93500-060-320-A ScrewPAN, 6X32 |
93500-060-320-A |
from US $0.58 |
||
|
17
|
17
93500-060-650-A Screw, pan (6x65) |
93500-060-650-A |
from US $0.74 |
||
|
18
|
18
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
19
|
19
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
