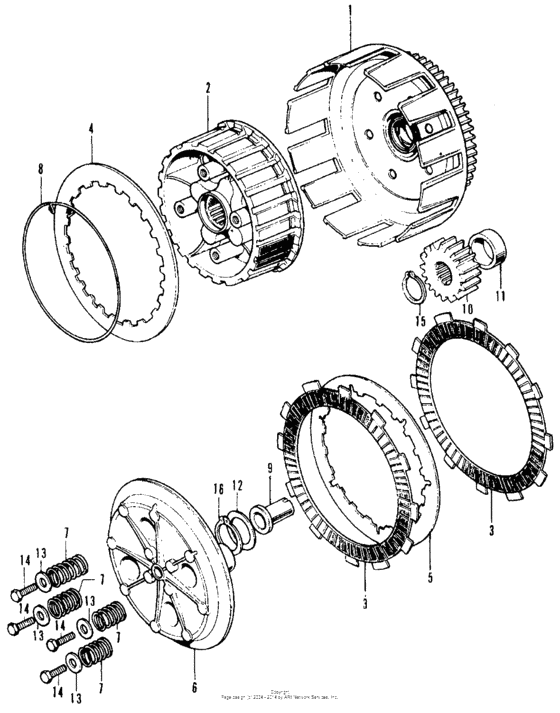

Clutch Diagram Honda CB500 CB500
- Model code
- CB500K1 A
- Sales region
- USA
- Frame
- CB5002000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-323-000
Outer,clutch
|
22100-323-000 |
— | ||
|
2
|
2
22120-323-010
Center,clutch
|
22120-323-010 |
— | ||
|
3
|
3
22201-KY2-000 Disk, cl friction |
22201-KY2-000 |
from US $14.66 |
||
|
5
|
5
22321-KA4-700 Plate b,clutch |
22321-KA4-700 |
from US $15.78 |
||
|
6
|
6
22350-286-000
Plate,clutch
|
22350-286-000 |
— | ||
| replacement | |||||
|
6
|
6
22350-329-000
Plate,clutch
|
22350-329-000 |
— | ||
|
6
|
6
22350-329-000
Plate,clutch
|
22350-329-000 |
— | ||
|
7
|
7
22401-323-003 Spring,clutchUse up to Engine SN 2112144 |
22401-323-003 |
from US $9.74 |
||
|
9
|
9
22838-323-000
Peace,clutch
|
22838-323-000 |
— | ||
|
10
|
10
23103-323-000
Gear,prim drive
|
23103-323-000 |
— | ||
|
11
|
11
23105-323-000
Collar,22x13.6
|
23105-323-000 |
— | ||
|
12
|
12
90458-323-010
Spacer,0.1mm
|
90458-323-010 |
— | ||
|
12
|
12
90459-323-010
Spacer,0.3mm
|
90459-323-010 |
— | ||
|
12
|
12
90460-323-010
Spacer,0.5mm
|
90460-323-010 |
— | ||
|
13
|
13
22501-323-000
Washer,6x19
|
22501-323-000 |
— | ||
|
14
|
14
92020-06020 Bolt,hex 6x20 |
92020-06020 |
US $0.47 |
||
|
15
|
15
94510-20000 CirclipEXTERNAL, 20MM |
94510-20000 |
from US $0.55 |
||
|
16
|
16
94510-25150 Circlip,25m/m |
94510-25150 |
US $0.59 |
||
