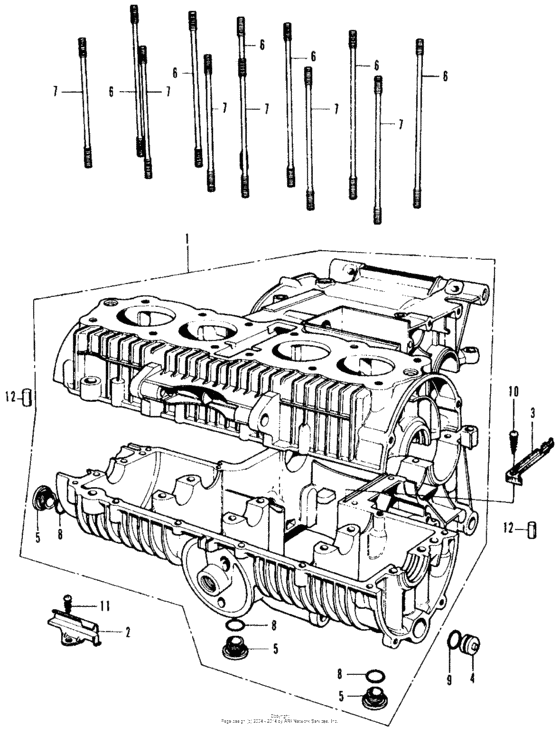

Crankcase Diagram Honda CB500 CB500
- Model code
- CB500K1 A
- Sales region
- USA
- Frame
- CB5002000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-323-000
Crankcase set
|
11000-323-000 |
— | ||
|
2
|
2
11202-323-000
Guide a, oil
|
11202-323-000 |
— | ||
|
3
|
3
11203-323-010
Guide b, oil
|
11203-323-010 |
— | ||
|
4
|
4
11207-323-000
Plug, oil passage
|
11207-323-000 |
— | ||
|
5
|
5
15331-300-000 Cap,oil path |
15331-300-000 |
US $19.58 |
||
|
6
|
6
90033-323-000
Bolt a,cyln stud
|
90033-323-000 |
— | ||
|
7
|
7
90034-323-000
Bolt b,cyln stud
|
90034-323-000 |
— | ||
|
8
|
8
94608-40000 O ring 19.4x2.8 |
94608-40000 |
from US $0.98 |
||
|
9
|
9
91319-300-000 O-ring (13x2.5) |
91319-300-000 |
from US $5.62 |
||
|
10
|
10
9390125310 Screw, tap (5x16) |
9390125310 |
from US $0.37 |
||
|
11
|
11
93901-26110 Screw |
93901-26110 |
from US $0.47 |
||
|
12
|
12
9430210160 Pin b, dowel, 10x16 |
9430210160 |
from US $1.04 |
