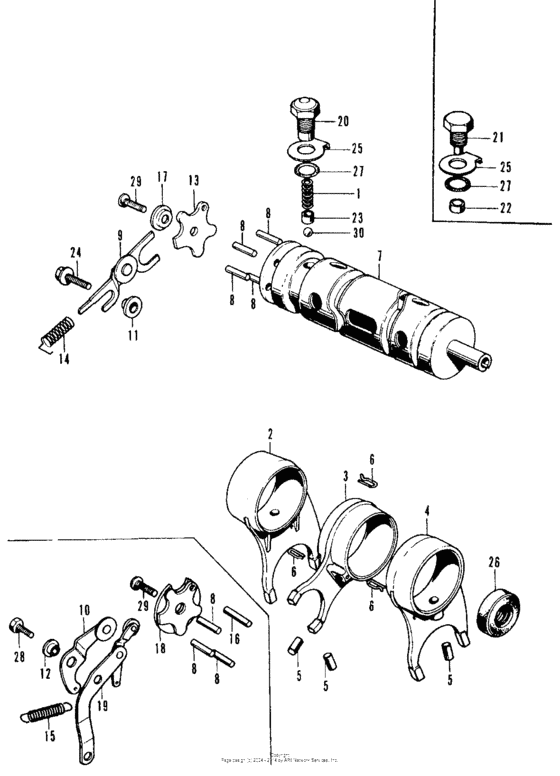

Gearshift fork + drum Diagram Honda CB500 CB500
- Model code
- CB500K1 A
- Sales region
- USA
- Frame
- CB5002000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
24211-323-000
Fork,r gear shift
|
24211-323-000 |
— | ||
|
3
|
3
24212-286-030
Fork,gear shift
|
24212-286-030 |
— | ||
|
4
|
4
24213-323-000
Fork,l gear shift
|
24213-323-000 |
— | ||
|
5
|
5
24261-283-000 Pin |
24261-283-000 |
from US $4.22 |
||
|
6
|
6
24263-286-000
Clip, shift fork
|
24263-286-000 |
— | ||
|
7
|
7
24301-286-050 Drum gear shift |
24301-286-050 |
US $173.33 |
||
|
8
|
8
24421-230-000 Pin, gearshift drum |
24421-230-000 |
from US $9.18 |
||
|
10
|
10
24430-323-020
Stopper,shiftdrum
|
24430-323-020 |
— | ||
|
12
|
12
24433-323-010
Collar,shift drum
|
24433-323-010 |
— | ||
|
15
|
15
24435-323-020
Spring,shift drum
|
24435-323-020 |
— | ||
|
16
|
16
24437-323-000
Pin,gear shift
|
24437-323-000 |
— | ||
|
18
|
18
24439-323-000
Plate,cam
|
24439-323-000 |
— | ||
|
19
|
19
24440-323-000
Stopper,shiftdrum
|
24440-323-000 |
— | ||
|
21
|
21
24446-323-000
Screw,shift drum
|
24446-323-000 |
— | ||
|
22
|
22
24447-323-000
Collar,guide
|
24447-323-000 |
— | ||
|
25
|
25
90434-286-000
Washer,lock 12m/m
|
90434-286-000 |
— | ||
|
26
|
26
91202-426-003 Oilseal,12x25x4.5 |
91202-426-003 |
from US $5.92 |
||
|
27
|
27
91304-216-000 New Genuine Part |
91304-216-000 |
from US $2.66 |
||
|
28
|
28
92020-06020 Bolt,hex 6x20 |
92020-06020 |
US $0.47 |
||
|
29
|
29
93600-060-200-A ScrewFLAT, 6X20 |
93600-060-200-A |
from US $0.44 |
