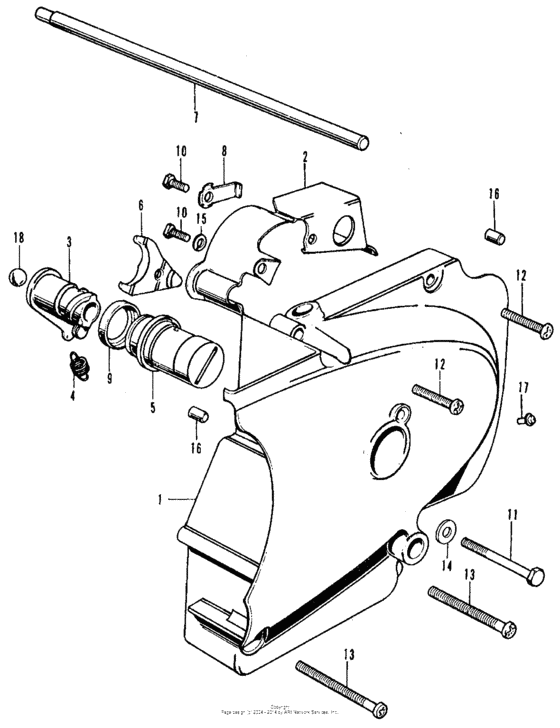

Left Crankcase Cover Diagram Honda CB500 CB500
- Model code
- CB500K1 A
- Sales region
- USA
- Frame
- CB5002000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-323-000
Cover, l. crankcase
|
11341-323-000 |
— | ||
|
2
|
2
11353-363-000
Protector, case
|
11353-363-000 |
— | ||
|
3
|
3
22810-323-000
Sled,cluh lifter
|
22810-323-000 |
— | ||
|
4
|
4
22815-283-000
Spring, clutch
|
22815-283-000 |
— | ||
|
5
|
5
22841-266-000
Adjuster, clutch
|
22841-266-000 |
— | ||
|
6
|
6
22844-323-000
Adjuster,piece
|
22844-323-000 |
— | ||
|
7
|
7
22850-323-000
Rod,cluh.lifter
|
22850-323-000 |
— | ||
|
8
|
8
90532-323-000
Washer,tongued6mm
|
90532-323-000 |
— | ||
|
9
|
9
91205-200-005 Oil seal 2226298 |
91205-200-005 |
US $9.47 |
||
|
10
|
10
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
11
|
11
92101-06045-0A Bolt, hex. (6x45) |
92101-06045-0A |
from US $0.59 |
||
|
12
|
12
93500-060-320-A ScrewPAN, 6X32 |
93500-060-320-A |
from US $0.58 |
||
|
13
|
13
93500-060550A Screw, pan, 6x55 |
93500-060550A |
from US $0.59 |
||
|
14
|
14
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
15
|
15
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
16
|
16
94302-06100 Pin bDOWEL, 6X10 |
94302-06100 |
from US $0.89 |
||
|
17
|
17
96201-30001 Nipple,grease4.5 |
96201-30001 |
from US $0.81 |
||
|
18
|
18
96211-10000 Ball |
96211-10000 |
from US $0.22 |
