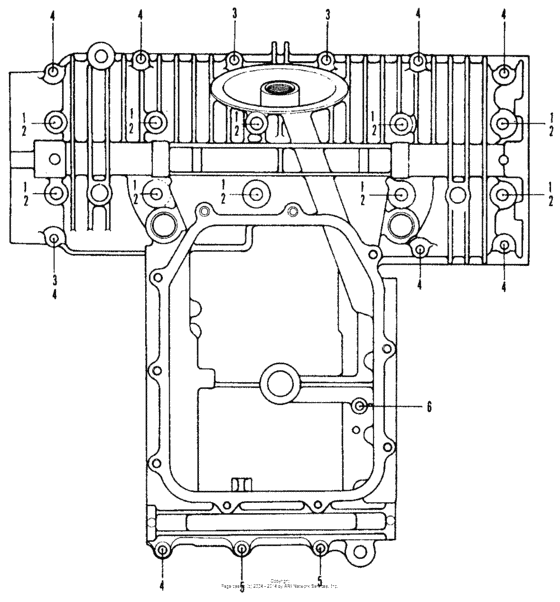

Lower case (bolt, washer) Diagram Honda CB500 CB500
- Model code
- CB500K1 A
- Sales region
- USA
- Frame
- CB5002000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90084-323-000
Bolt,hex 8x100
|
90084-323-000 |
— | ||
|
2
|
2
90485-035-000 Washer, 14m/m |
90485-035-000 |
from US $2.03 |
||
|
3
|
3
95701-0603200 Bolt, flange, 6x32 |
95701-0603200 |
from US $0.59 |
||
|
4
|
4
95701-0604000 Bolt, flange, 6x40 |
95701-0604000 |
from US $0.62 |
||
|
5
|
5
95701-060-550-0 BoltFLANGE, 6X55 |
95701-060-550-0 |
from US $0.74 |
||
|
6
|
6
95701-0610500 Bolt, flange (6x105) |
95701-0610500 |
from US $1.18 |
