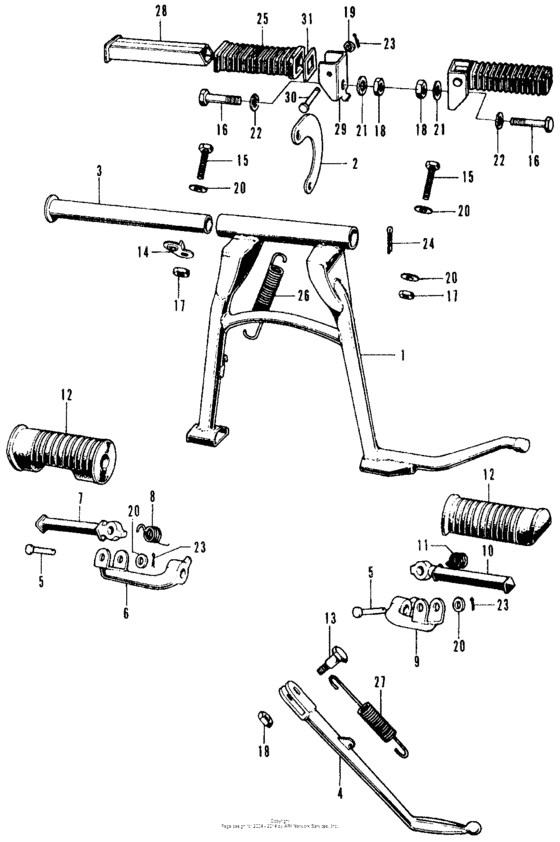

Main stand + step Diagram Honda CB500 CB500
- Model code
- CB500K1 A
- Sales region
- USA
- Frame
- CB5002000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50500-323-000-B
Stand,main
|
50500-323-000-B |
— | ||
|
2
|
2
50523-300-010 Plate main stand |
50523-300-010 |
US $8.87 |
||
|
3
|
3
50526-300-000 Pipe |
50526-300-000 |
US $16.46 |
||
|
4
|
4
50530-323-000-B
Bar,side stand
|
50530-323-000-B |
— | ||
|
5
|
5
50603-033-010 Pin, step bar joint |
50603-033-010 |
from US $3.70 |
||
|
6
|
6
50615-323-670-B
Bar,r step
|
50615-323-670-B |
— | ||
|
7
|
7
50616-323-670-B
Arm comp,r step
|
50616-323-670-B |
— | ||
|
8
|
8
50617-283-000
Spring, return
|
50617-283-000 |
— | ||
|
9
|
9
50641-323-670-B Bar,l step |
50641-323-670-B |
US $49.95 |
||
|
10
|
10
50642-323-670-B
Arm,l step
|
50642-323-670-B |
— | ||
|
11
|
11
50644-283-000 Spring, return |
50644-283-000 |
US $4.68 |
||
|
12
|
12
50661-310-000 Rubber,step |
50661-310-000 |
from US $15.33 |
||
|
13
|
13
90108-283-000 Screw,pivot |
90108-283-000 |
from US $6.96 |
||
|
14
|
14
90514-323-000
Washer,bat guide
|
90514-323-000 |
— | ||
|
15
|
15
92101-08040-0A Bolt, hex., 8x40 |
92101-08040-0A |
from US $0.59 |
||
|
16
|
16
92101-10035-0A
Bolt, hex. (10x35)
|
92101-10035-0A |
— | ||
|
17
|
17
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
18
|
18
94001-100-000-S NutHEX., 10MM |
94001-100-000-S |
from US $0.44 |
||
|
19
|
19
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
20
|
20
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
21
|
21
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
22
|
22
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
23
|
23
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
24
|
24
94201-25300 Pin, split, 2.5x30 |
94201-25300 |
from US $0.44 |
||
|
25
|
25
95011-31000 Rubber,pillon |
95011-31000 |
from US $1.85 |
||
|
26
|
26
9501471702 Spring g, main stand |
9501471702 |
from US $3.18 |
||
|
27
|
27
9501472402 Spring d, side stand |
9501472402 |
from US $1.63 |
||
|
28
|
28
95015-62000 Bar,pillion |
95015-62000 |
from US $8.58 |
||
|
29
|
29
95015-72100
Bracket,pillion
|
95015-72100 |
— | ||
|
30
|
30
9501582000 Pin b |
9501582000 |
from US $1.55 |
||
|
31
|
31
95015-91000 Washer,pillion |
95015-91000 |
from US $0.89 |
