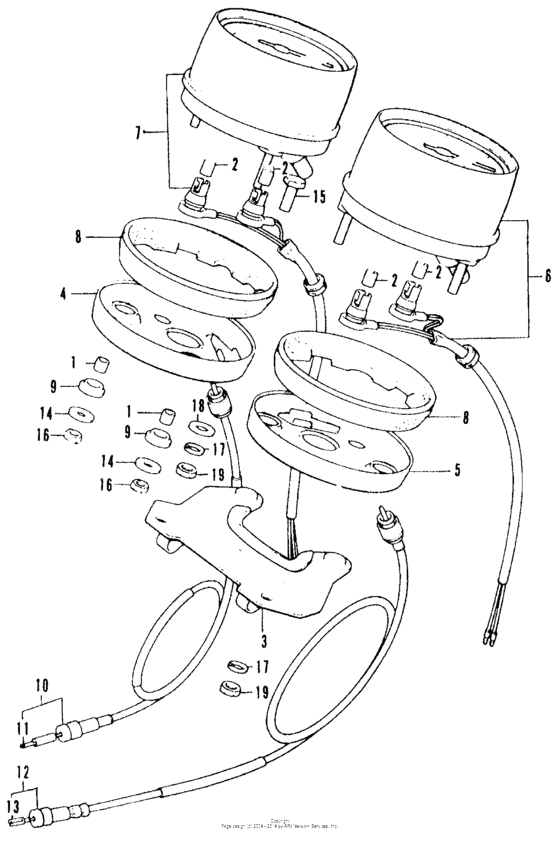

Speedometer + tachometer k1 Diagram Honda CB500 CB500
- Model code
- CB500K1 A
- Sales region
- USA
- Frame
- CB5002000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17220-300-010
Collar,case.set
|
17220-300-010 |
— | ||
|
2
|
2
34902-259-000 BulbDASH (12V 3.4W) (STANLEY) |
34902-259-000 |
from US $2.29 |
||
| replacement | |||||
|
2
|
2
34902-259-003 Bulb (12v 3.4w) |
34902-259-003 |
from US $2.11 |
||
|
3
|
3
37211-323-671
Plate,meter set
|
37211-323-671 |
— | ||
|
4
|
4
37212-447-000 Ring, r. |
37212-447-000 |
from US $18.36 |
||
|
5
|
5
37213-455-000 Ring,l.meter set |
37213-455-000 |
from US $29.99 |
||
| replacement | |||||
|
5
|
5
37213-447-000 Ring, l. |
37213-447-000 |
from US $17.54 |
||
|
5
|
5
37213-447-000 Ring, l. |
37213-447-000 |
from US $17.54 |
||
|
6
|
6
37230-323-701
Speedometer assy
|
37230-323-701 |
— | ||
|
7
|
7
37240-323-701
Tachometer assy.
|
37240-323-701 |
— | ||
|
8
|
8
37242-323-701 Rubber, meter |
37242-323-701 |
from US $15.37 |
||
|
9
|
9
37244-307-670 Rubber |
37244-307-670 |
from US $3.55 |
||
|
10
|
10
37260-300-000 Cable tachometer |
37260-300-000 |
US $30.46 |
||
|
10
|
10
37260-449-840 Cable,tachometer |
37260-449-840 |
US $28.86 |
||
|
11
|
11
37260-300-000 Cable tachometer |
37260-300-000 |
US $30.46 |
||
|
11
|
11
37260-449-840 Cable,tachometer |
37260-449-840 |
US $28.86 |
||
|
12
|
12
44830-425-870 Cable,speedometer |
44830-425-870 |
from US $34.14 |
||
|
13
|
13
44830-425-870 Cable,speedometer |
44830-425-870 |
from US $34.14 |
||
|
14
|
14
90545-292-000 Washer, 6.5x20 |
90545-292-000 |
from US $2.59 |
||
|
15
|
15
92101-08016-0A Bolt, hex., 8x16 |
92101-08016-0A |
from US $0.52 |
||
|
16
|
16
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
17
|
17
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
18
|
18
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
19
|
19
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
