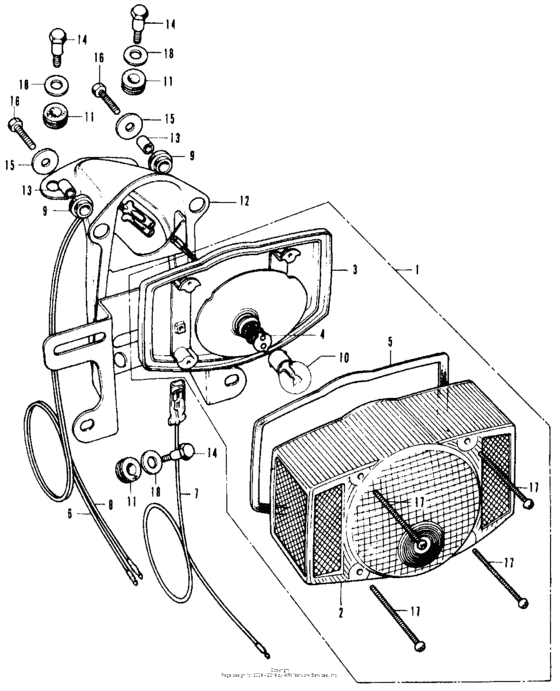

Taillight k1-k2 Diagram Honda CB500 CB500
- Model code
- CB500K1 A
- Sales region
- USA
- Frame
- CB5002000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33701-341-671
Unit,tail light
|
33701-341-671 |
— | ||
|
2
|
2
33702-341-671 Lens,tail light |
33702-341-671 |
from US $56.29 |
||
|
3
|
3
33703-341-671
Base,tail light
|
33703-341-671 |
— | ||
|
4
|
4
33708-098-000 Wire, taillight |
33708-098-000 |
US $7.84 |
||
|
5
|
5
33709-341-671
Packing,tail lt.
|
33709-341-671 |
— | ||
|
6
|
6
33711-323-000
Cord,tail light
Use up to Frame SN 2034711 |
33711-323-000 |
— | ||
|
7
|
7
33712-300-003
Cord tail light
|
33712-300-003 |
— | ||
|
8
|
8
33713-323-000
Cord,tail light
Use up to Frame SN 2034711 |
33713-323-000 |
— | ||
|
9
|
9
33719-077-671 Packing,tail,ba,b |
33719-077-671 |
from US $2.14 |
||
|
10
|
10
34906-MG9-771 Bulb (12v27/7w) |
34906-MG9-771 |
from US $5.10 |
||
|
11
|
11
80101-283-000 Rubber, rr. fender cushion |
80101-283-000 |
from US $4.29 |
||
|
12
|
12
84701-341-670XW
Bracket,no.plate
|
84701-341-670XW |
— | ||
|
14
|
14
90162-283-000 Bolt, fender set. |
90162-283-000 |
from US $4.29 |
||
|
15
|
15
90581-310-000 Washer,18m/m |
90581-310-000 |
from US $2.74 |
||
|
16
|
16
92101-05020-0B Bolt, hex. (5x20) |
92101-05020-0B |
US $0.52 |
||
|
17
|
17
93500-040-554-J Screw,pan,4x55 |
93500-040-554-J |
from US $0.44 |
||
|
18
|
18
9410108200 Washer, plain, 8mm |
9410108200 |
from US $0.44 |
