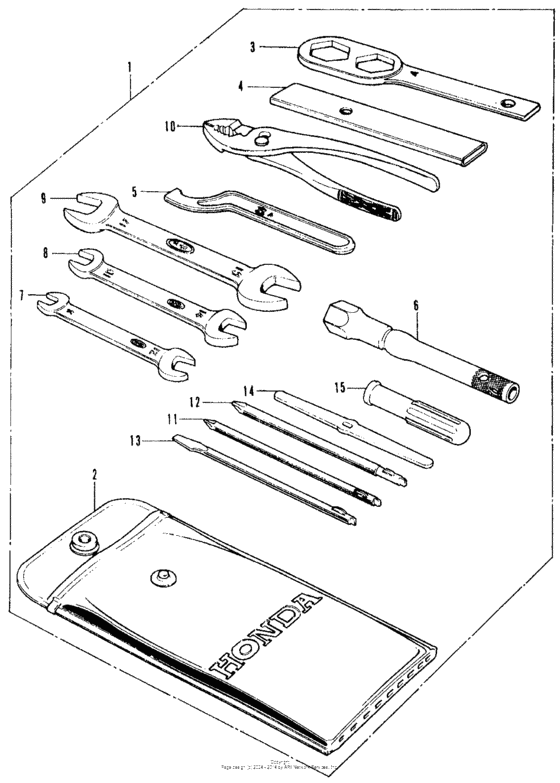

Tool 1 Diagram Honda CB500 CB500
- Model code
- CB500K1 A
- Sales region
- USA
- Frame
- CB5002000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89010-323-000
Tool set
Use up to Frame SN 2034711 |
89010-323-000 |
— | ||
|
1
|
1
89010-390-000
Tool assy
Use up to Frame SN 2034711 |
89010-390-000 |
— | ||
|
2
|
2
89101-ME5-670
Bag, tool
Use up to Frame SN 2034711 |
89101-ME5-670 |
— | ||
|
3
|
3
89202-283-000
Wrench, axle
Use up to Frame SN 2034711 |
89202-283-000 |
— | ||
|
4
|
4
89203-283-000 Arm, axle wrenchUse up to Frame SN 2034711 |
89203-283-000 |
US $1.22 |
||
|
5
|
5
89206-283-000
Spanner,pin
Use up to Frame SN 2034711 |
89206-283-000 |
— | ||
|
6
|
6
89216-323-000
Wrench,plug
Use up to Frame SN 2034711 |
89216-323-000 |
— | ||
|
7
|
7
9900108120 Spanner, 8x12Use up to Frame SN 2034711 |
9900108120 |
from US $3.11 |
||
|
8
|
8
9900110140 Spanner, 10x14Use up to Frame SN 2034711 |
9900110140 |
from US $3.55 |
||
|
9
|
9
99001-17190 Spanner, 17x19Use up to Frame SN 2034711 |
99001-17190 |
from US $4.59 |
||
|
10
|
10
99002-15000 Pliers150 Use up to Frame SN 2034711 |
99002-15000 |
from US $6.51 |
||
|
11
|
11
99003-10000 Driver1PLUS SCREW(NO.2) Use up to Frame SN 2034711 |
99003-10000 |
from US $1.41 |
||
|
12
|
12
9900320000 Driver 2, plus screw (no.3)Use up to Frame SN 2034711 |
9900320000 |
from US $1.55 |
||
|
13
|
13
99003-30000 Driver 3MINUS SCREW (NO.2) Use up to Frame SN 2034711 |
99003-30000 |
from US $1.41 |
||
|
14
|
14
9900340000 LeverUse up to Frame SN 2034711 |
9900340000 |
from US $0.98 |
||
|
15
|
15
99003-50000 GripSCREW DRIVER Use up to Frame SN 2034711 |
99003-50000 |
from US $1.70 |
