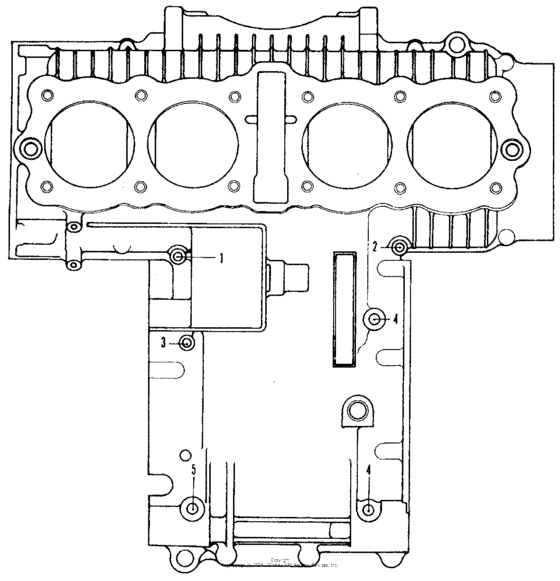

Upper case (bolt) Diagram Honda CB500 CB500
- Model code
- CB500K1 A
- Sales region
- USA
- Frame
- CB5002000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95701-0603200 Bolt, flange, 6x32 |
95701-0603200 |
from US $0.59 |
||
|
2
|
2
95701-060-500-0 BoltFLANGE, 6X50 |
95701-060-500-0 |
from US $0.78 |
||
|
3
|
3
95701-061-000-0 Bolt, flange, 6x100 |
95701-061-000-0 |
from US $0.86 |
||
|
4
|
4
95701-0810000 Bolt, flange (8x100) |
95701-0810000 |
from US $1.24 |
||
|
5
|
5
90011-323-000
Bolt, flange (8x145)
|
90011-323-000 |
— |
