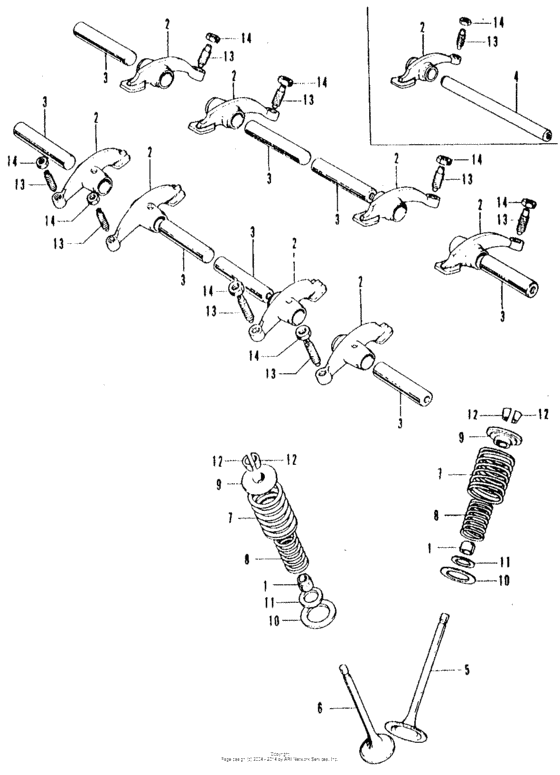

Valve + rocker arm Diagram Honda CB500 CB500
- Model code
- CB500K1 A
- Sales region
- USA
- Frame
- CB5002000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12209-333-005 Seal, valve stemUse up to Engine SN 2112469 |
12209-333-005 |
from US $11.69 |
||
|
2
|
2
14431-324-000
Arm,valve rocker
|
14431-324-000 |
— | ||
|
3
|
3
14451-323-010
Shaft,rocker arm
Use from Engine SN 2006338 |
14451-323-010 |
— | ||
|
4
|
4
14451-323-305 Shaft,rocker armUse up to Engine SN 2006337 |
14451-323-305 |
US $25.89 |
||
|
5
|
5
14711-107-020
Valve,inlft
|
14711-107-020 |
— | ||
|
6
|
6
14721-323-005 Valve,exhaust |
14721-323-005 |
US $84.97 |
||
|
7
|
7
14751-324-000 Spring,valve out |
14751-324-000 |
from US $9.01 |
||
|
8
|
8
14761-324-000 Spring,valve in |
14761-324-000 |
from US $5.68 |
||
|
9
|
9
14771-107-020 Retainer, vlv spr |
14771-107-020 |
from US $5.03 |
||
|
10
|
10
14775-107-000 Seat, valve spring |
14775-107-000 |
from US $3.63 |
||
|
11
|
11
14776-107-010 Seat, valve spring |
14776-107-010 |
from US $2.37 |
||
|
12
|
12
14781-107-003 Cotter, valve (sanko) |
14781-107-003 |
from US $3.18 |
||
|
13
|
13
90012-426-000 Screw, tappet adj |
90012-426-000 |
from US $4.07 |
||
|
14
|
14
90206-250-000 Nut, tappet adjusting |
90206-250-000 |
from US $1.92 |
