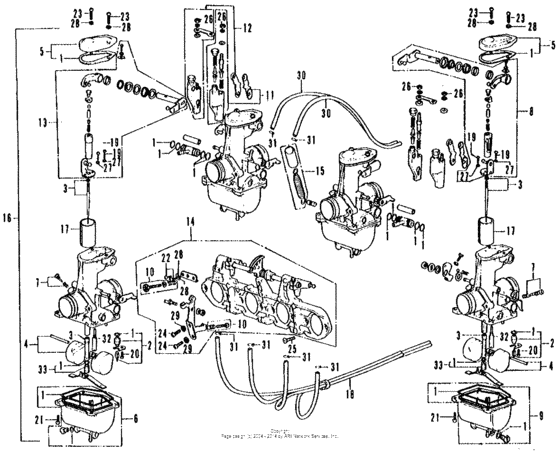

Carburetor Diagram Honda CB500 CB500
- Model code
- CB500K2 A
- Sales region
- USA
- Frame
- CB5002100001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-323-315 Gasket set |
16010-323-315 |
from US $20.40 |
||
|
2
|
2
16011-329-004 Float valve-set |
16011-329-004 |
from US $53.79 |
||
|
3
|
3
16012-323-004
Needle set,jet
|
16012-323-004 |
— | ||
|
4
|
4
16013-329-004
Float-set
|
16013-329-004 |
— | ||
|
5
|
5
16014-323-004
Top set
|
16014-323-004 |
— | ||
|
6
|
6
16015-323-004
Chamber set,float
|
16015-323-004 |
— | ||
|
7
|
7
16016-323-004
Screw set a
|
16016-323-004 |
— | ||
|
8
|
8
16018-323-004
Arm set a, link
|
16018-323-004 |
— | ||
|
9
|
9
16023-323-004
Chamber b set
|
16023-323-004 |
— | ||
|
10
|
10
16028-323-004
Screw set b
|
16028-323-004 |
— | ||
|
11
|
11
16029-323-004
Holder-set a,adj.
|
16029-323-004 |
— | ||
|
12
|
12
16030-323-004
Holder-set b,adj
|
16030-323-004 |
— | ||
|
13
|
13
16031-323-004
Arm set b,link
|
16031-323-004 |
— | ||
|
14
|
14
16035-323-004
Plate set, stay
|
16035-323-004 |
— | ||
|
15
|
15
16036-323-004
Tube-set
|
16036-323-004 |
— | ||
|
16
|
16
16100-323-024
Carburetor assy.
|
16100-323-024 |
— | ||
|
17
|
17
16111-323-004
Valve,throttle
|
16111-323-004 |
— | ||
|
18
|
18
16290-323-010
Tube,over flow
|
16290-323-010 |
— | ||
|
19
|
19
93500-030-100-A ScrewPAN, 3X10 |
93500-030-100-A |
from US $0.37 |
||
|
20
|
20
93500-040-100-A ScrewPAN, 4X10 |
93500-040-100-A |
from US $0.37 |
||
|
21
|
21
93500-040-120-A ScrewPAN, 4X12 |
93500-040-120-A |
from US $0.37 |
||
|
22
|
22
93500-050-120-A ScrewPAN, 5X12 |
93500-050-120-A |
from US $0.37 |
||
|
23
|
23
93500-050-160-A Screw |
93500-050-160-A |
from US $0.37 |
||
|
24
|
24
93500-060-120-A ScrewPAN, 6X12 |
93500-060-120-A |
from US $0.44 |
||
|
25
|
25
93600-060-160-A ScrewFLAT, 6X16 |
93600-060-160-A |
from US $0.44 |
||
|
26
|
26
94001-050-000-S NutHEX., 5MM |
94001-050-000-S |
from US $0.37 |
||
|
27
|
27
94111-03000 WasherSPRING, 3MM |
94111-03000 |
from US $0.38 |
||
|
28
|
28
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
29
|
29
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
30
|
30
95001-350-0360M Bulk hose (3.5x3000) |
95001-350-0360M |
from US $13.99 |
||
|
31
|
31
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
32
|
32
99124-076-0400 Jet slow #40 |
99124-076-0400 |
from US $3.55 |
||
|
33
|
33
99202-601-100-0 Jet set,sec.main |
99202-601-100-0 |
from US $4.44 |
