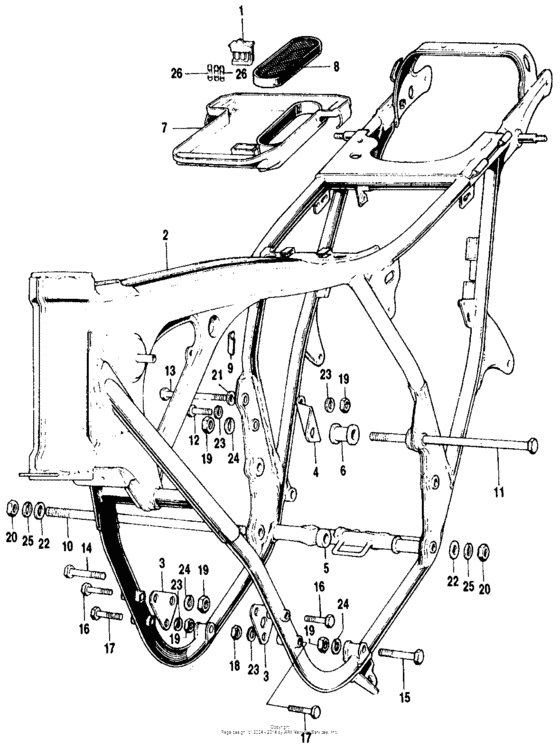

Frame Diagram Honda CB500 CB500
- Model code
- CB500K2 A
- Sales region
- USA
- Frame
- CB5002100001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38206-431-000 Case,fuse |
38206-431-000 |
US $3.43 |
||
|
2
|
2
50100-323-674-B
Frame *nh1*
|
50100-323-674-B |
— | ||
|
3
|
3
50351-323-010-B
Bracket,fr engine
|
50351-323-010-B |
— | ||
|
4
|
4
50356-323-010-B
Bracket,rr-engine
|
50356-323-010-B |
— | ||
|
5
|
5
50357-323-010
Collar,r eng un
|
50357-323-010 |
— | ||
|
6
|
6
50359-323-010
Collar,l eng un
|
50359-323-010 |
— | ||
|
7
|
7
83501-323-020
Tray,tool
|
83501-323-020 |
— | ||
|
8
|
8
83502-323-000
Net,tool tray
|
83502-323-000 |
— | ||
|
9
|
9
87506-323-670
Mark,bat.caution
|
87506-323-670 |
— | ||
|
10
|
10
90107-323-000
Bolt,rr engine
|
90107-323-000 |
— | ||
|
11
|
11
90108-323-000
Bolt,rr eng upper
|
90108-323-000 |
— | ||
|
12
|
12
92101-08040-0A Bolt, hex., 8x40 |
92101-08040-0A |
from US $0.59 |
||
|
13
|
13
92101-08100-0A Bolt,hex.,8x100 |
92101-08100-0A |
US $1.10 |
||
|
14
|
14
92200-10050-0A Bolt,hex 10x50 |
92200-10050-0A |
US $0.81 |
||
|
15
|
15
92200-10080-0A
Bolt 10x80
|
92200-10080-0A |
— | ||
|
16
|
16
93101-080-500-A
Bolt, hex. (8x50)
|
93101-080-500-A |
— | ||
|
17
|
17
93000-080-550-A Bolt,hex 8x55 |
93000-080-550-A |
US $0.70 |
||
|
18
|
18
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
19
|
19
9403010000 Nut, hex., 10mm |
9403010000 |
from US $0.55 |
||
|
20
|
20
94030-12000 Nut, hex., 12mm |
94030-12000 |
from US $0.59 |
||
|
21
|
21
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
22
|
22
94101-12000 WasherPLAIN, 12MM |
94101-12000 |
from US $0.52 |
||
|
23
|
23
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
24
|
24
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
25
|
25
94111-12000 WasherSPRING, 12MM |
94111-12000 |
from US $0.44 |
||
|
26
|
26
98200-11500 Fuse (15a) |
98200-11500 |
from US $0.59 |
