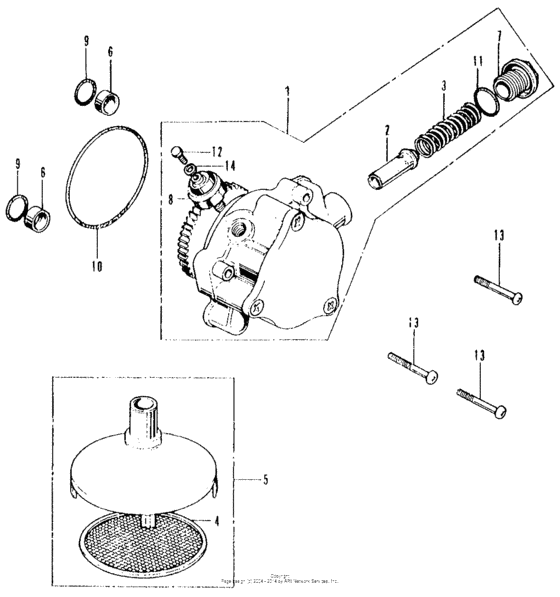

Oil pump Diagram Honda CB500 CB500
- Model code
- CB500K2 A
- Sales region
- USA
- Frame
- CB5002100001 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-390-000
Oil pump assy
|
15100-390-000 |
— | ||
|
2
|
2
15140-300-010 Valve,relief |
15140-300-010 |
US $12.78 |
||
|
3
|
3
15145-300-000
Spring,relief
|
15145-300-000 |
— | ||
|
4
|
4
15150-300-000 Screen,strainer |
15150-300-000 |
US $28.86 |
||
|
5
|
5
15150-323-000
Strainer assy,oil
|
15150-323-000 |
— | ||
|
6
|
6
15155-323-000
Collar,o ring
|
15155-323-000 |
— | ||
|
7
|
7
15331-323-003
Cap,oil pass
|
15331-323-003 |
— | ||
|
8
|
8
37240-P13-013 Switch assyOIL PRESSURE (DENSO) Use up to Engine SN 2165345 |
37240-P13-013 |
from US $20.67 |
||
|
9
|
9
91301-268-020 O ring, 14m/m |
91301-268-020 |
from US $4.07 |
||
|
10
|
10
91302-250-010 O ring,47m/m |
91302-250-010 |
from US $9.55 |
||
|
11
|
11
94608-40000 O ring 19.4x2.8 |
94608-40000 |
from US $0.98 |
||
|
12
|
12
92000-04006-0A Bolt,hex 4x6 |
92000-04006-0A |
US $0.37 |
||
|
13
|
13
93500-060350A Screw, pan, 6x35 |
93500-060350A |
from US $0.52 |
||
|
14
|
14
94101-04000 WasherPLAIN, 4MM |
94101-04000 |
from US $0.37 |
