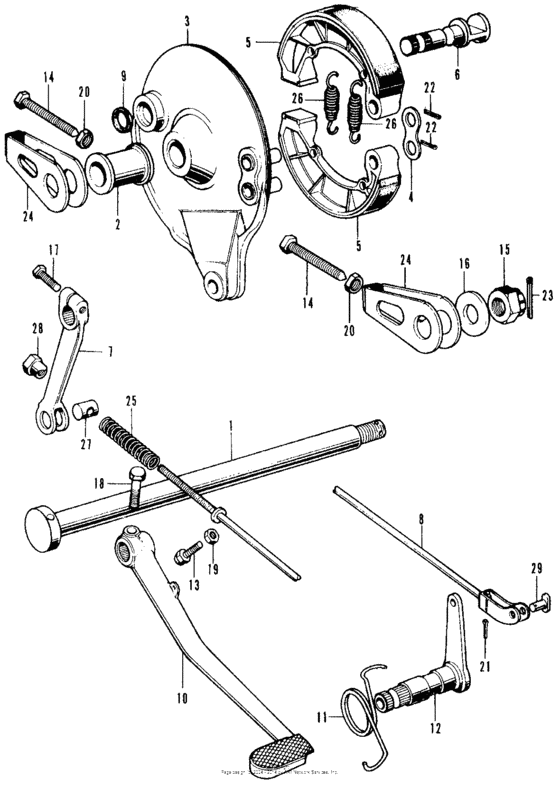

Rear brake panel + brake pedal Diagram Honda CB500 CB500
- Model code
- CB500K2 A
- Sales region
- USA
- Frame
- CB5002100001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06430-390-405
Shoe kit, brake
|
06430-390-405 |
— | ||
|
1
|
1
42301-300-020
Axle,rear wheel
|
42301-300-020 |
— | ||
|
2
|
2
42313-323-010
Collar,rr brk pnl
|
42313-323-010 |
— | ||
|
3
|
3
43100-374-000
Panel, rr. brake
|
43100-374-000 |
— | ||
|
4
|
4
43102-319-000 Washer, anchor pin |
43102-319-000 |
from US $3.63 |
||
|
5
|
5
06430-390-405
Shoe kit, brake
|
06430-390-405 |
— | ||
|
6
|
6
43141-374-000
Cam,rear brake
|
43141-374-000 |
— | ||
|
7
|
7
43411-374-000
Arm,rear brake
|
43411-374-000 |
— | ||
|
8
|
8
43451-323-020
Rod,rr.brake
|
43451-323-020 |
— | ||
|
9
|
9
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.15 |
||
|
10
|
10
46500-323-010 Pedal,rear brake |
46500-323-010 |
US $163.34 |
||
|
11
|
11
46514-323-020
Spring,brk pedal
|
46514-323-020 |
— | ||
|
12
|
12
46515-323-010
Shaft,rear brake
|
46515-323-010 |
— | ||
|
13
|
13
90104-323-000
Bolt,brake pedal
|
90104-323-000 |
— | ||
|
14
|
14
90119-300-000 Bolt,chain adjust |
90119-300-000 |
from US $5.77 |
||
|
15
|
15
90306-329-770 Nut, rr. wheel axle |
90306-329-770 |
from US $6.81 |
||
|
16
|
16
90523-292-000
Washer,18.5x38
|
90523-292-000 |
— | ||
|
17
|
17
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
18
|
18
92101-08028-0A Bolt, hex., 8x28 |
92101-08028-0A |
from US $0.59 |
||
|
19
|
19
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
20
|
20
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
21
|
21
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
22
|
22
94201-25300 Pin, split, 2.5x30 |
94201-25300 |
from US $0.44 |
||
|
23
|
23
9420140300 Pin, split, 4.0x30 |
9420140300 |
from US $0.44 |
||
|
24
|
24
95014-19000 Adjuster,chain |
95014-19000 |
from US $5.48 |
||
|
25
|
25
9501473100 Spring a, brake rod |
9501473100 |
from US $0.74 |
||
|
26
|
26
95014-74320
Spring,brake shoe
|
95014-74320 |
— | ||
|
27
|
27
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
|
28
|
28
9501542000 Nut b, brake rod adjusting |
9501542000 |
from US $1.48 |
||
|
29
|
29
9501552000 Pin b, brake rod joint |
9501552000 |
from US $1.48 |
