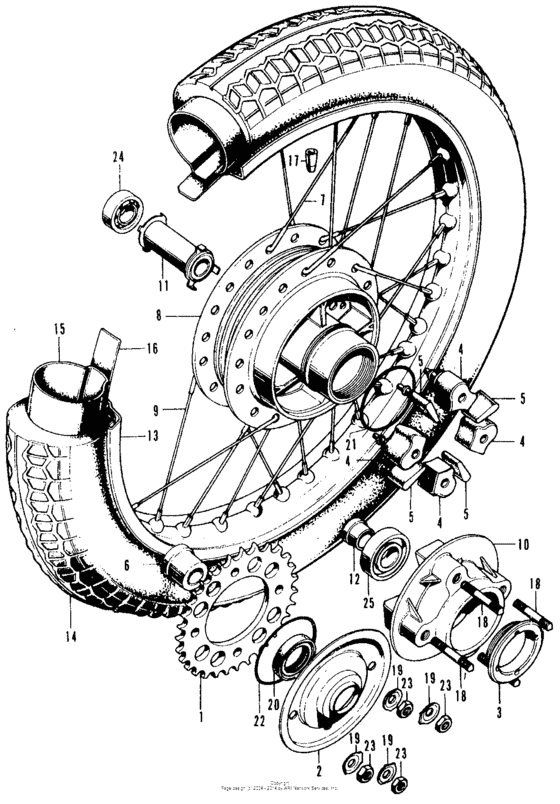

Rear wheel + driven sprocket Diagram Honda CB500 CB500
- Model code
- CB500K2 A
- Sales region
- USA
- Frame
- CB5002100001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41201-323-010
Sprocket,final
|
41201-323-010 |
— | ||
|
2
|
2
41211-323-000
Plate,sprkt side
|
41211-323-000 |
— | ||
|
3
|
3
41231-323-020
Retainer,bearing
|
41231-323-020 |
— | ||
|
4
|
4
41242-323-000
Dampper a,rear
|
41242-323-000 |
— | ||
|
5
|
5
41243-323-000
Dampper b,rear
|
41243-323-000 |
— | ||
|
6
|
6
42311-323-040
Collar,rear wheel
|
42311-323-040 |
— | ||
|
7
|
7
42601-283-000 Spoke a, rear |
42601-283-000 |
US $9.77 |
||
|
8
|
8
42601-323-030
Hub,rear wheel
|
42601-323-030 |
— | ||
|
9
|
9
42604-283-000 Spoke b, rear |
42604-283-000 |
US $10.36 |
||
|
10
|
10
42610-323-000
Flange,final
|
42610-323-000 |
— | ||
|
11
|
11
42620-323-030
Collar,rear axle
|
42620-323-030 |
— | ||
|
12
|
12
42625-283-000
Collar
|
42625-283-000 |
— | ||
|
13
|
13
42701-404-771
Rim,rr.wheel
|
42701-404-771 |
— | ||
|
14
|
14
42711-388-671
Tire,rear
|
42711-388-671 |
— | ||
|
15
|
15
42712-446-631
Tube,tire
|
42712-446-631 |
— | ||
|
16
|
16
42713-268-003
Flap,x-18a
|
42713-268-003 |
— | ||
| replacement | |||||
|
16
|
16
42713-304-003 Flap (1.40/1.60-18) |
42713-304-003 |
US $9.78 |
||
|
17
|
17
44606-283-000 Balancer (20g) |
44606-283-000 |
from US $6.48 |
||
|
17
|
17
44607-283-000 Balancer, wheel |
44607-283-000 |
from US $6.79 |
||
|
17
|
17
44608-283-000 Balancer, wheel |
44608-283-000 |
US $42.70 |
||
|
17
|
17
44609-283-000 Balancer, wheel |
44609-283-000 |
US $5.12 |
||
|
18
|
18
90125-323-000
Bolt,stud,10x48
|
90125-323-000 |
— | ||
|
19
|
19
90524-323-000
Washer,10mm
|
90524-323-000 |
— | ||
|
20
|
20
90753-283-000 Oil seal, 34559 |
90753-283-000 |
from US $18.90 |
||
|
21
|
21
91261-323-000
D ring,79x2.6
|
91261-323-000 |
— | ||
|
22
|
22
91262-323-000
O ring,92x2
|
91262-323-000 |
— | ||
|
23
|
23
9403010000 Nut, hex., 10mm |
9403010000 |
from US $0.55 |
||
|
24
|
24
96140-6304010 Bearing (6304u) |
96140-6304010 |
from US $11.56 |
||
|
25
|
25
96140-630-501-0 B/brg rad n/com |
96140-630-501-0 |
from US $13.17 |
||
