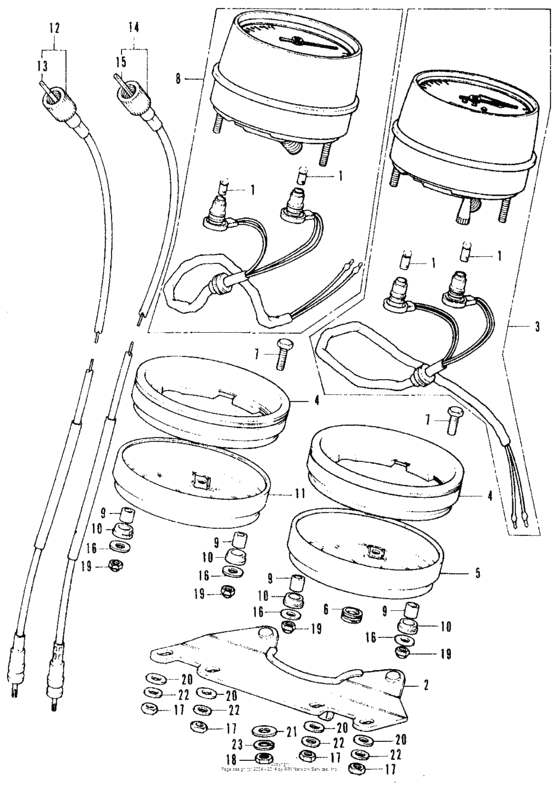

Speedometer + tachometer k2 Diagram Honda CB500 CB500
- Model code
- CB500K2 A
- Sales region
- USA
- Frame
- CB5002100001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34902-259-000 BulbDASH (12V 3.4W) (STANLEY) |
34902-259-000 |
from US $2.29 |
||
| replacement | |||||
|
1
|
1
34902-259-003 Bulb (12v 3.4w) |
34902-259-003 |
from US $2.11 |
||
|
2
|
2
37211-341-700
Plate,meter set
|
37211-341-700 |
— | ||
|
3
|
3
37200-374-671
Speedometer assy
|
37200-374-671 |
— | ||
|
3
|
3
37230-323-704
Speedometer assy
|
37230-323-704 |
— | ||
|
4
|
4
37235-323-700 Rubber, speedometer |
37235-323-700 |
from US $19 |
||
|
5
|
5
37236-323-700
Plate,spdmt.under
|
37236-323-700 |
— | ||
|
6
|
6
37237-323-700
Grommet,meter
|
37237-323-700 |
— | ||
|
7
|
7
37238-323-700 Bolt (6mm) |
37238-323-700 |
US $3.03 |
||
|
8
|
8
37240-323-773
Tachometer assy.
|
37240-323-773 |
— | ||
|
8
|
8
37240-323-774
Tachometer assy.
|
37240-323-774 |
— | ||
|
9
|
9
37243-323-700 Collar |
37243-323-700 |
US $5.33 |
||
|
10
|
10
37244-307-670 Rubber |
37244-307-670 |
from US $3.55 |
||
|
11
|
11
37246-323-700
Plate,tach.under
|
37246-323-700 |
— | ||
|
12
|
12
37260-300-000 Cable tachometer |
37260-300-000 |
US $30.46 |
||
|
12
|
12
37260-449-840 Cable,tachometer |
37260-449-840 |
US $28.86 |
||
|
13
|
13
37260-300-000 Cable tachometer |
37260-300-000 |
US $30.46 |
||
|
13
|
13
37260-449-840 Cable,tachometer |
37260-449-840 |
US $28.86 |
||
|
14
|
14
44830-425-870 Cable,speedometer |
44830-425-870 |
from US $34.14 |
||
|
15
|
15
44830-425-870 Cable,speedometer |
44830-425-870 |
from US $34.14 |
||
|
16
|
16
90545-323-700 Washer, 6.5x18 |
90545-323-700 |
from US $2.74 |
||
|
17
|
17
94001-060-700-S NutHEX., 6MM |
94001-060-700-S |
from US $0.44 |
||
|
18
|
18
94001-080-700-S NutHEX., 8MM |
94001-080-700-S |
from US $0.44 |
||
|
19
|
19
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
20
|
20
94101-06700 WasherPLAIN, 6MM |
94101-06700 |
from US $0.37 |
||
|
21
|
21
94101-08700 WasherPLAIN, 8MM |
94101-08700 |
from US $0.37 |
||
|
22
|
22
94111-06700 WasherSPRING, 6MM |
94111-06700 |
from US $0.37 |
||
|
23
|
23
94111-08700 WasherSPRING, 8MM |
94111-08700 |
US $0.37 |
||
