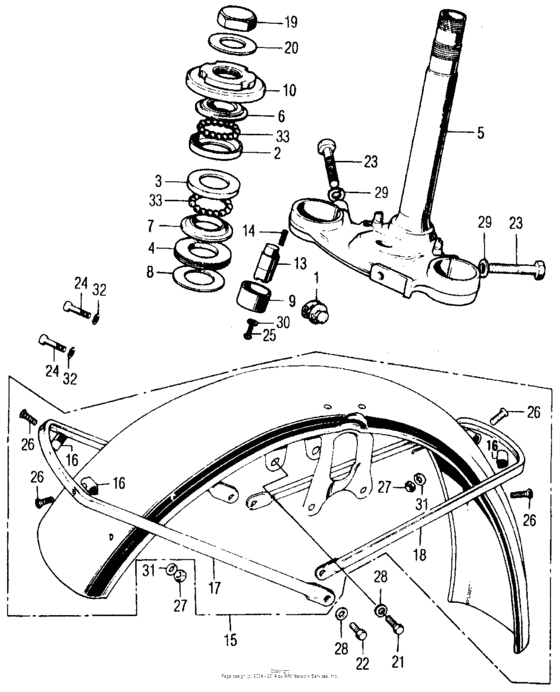

Steering stem + front fender Diagram Honda CB500 CB500
- Model code
- CB500K2 A
- Sales region
- USA
- Frame
- CB5002100001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45451-367-690 Grommet, wire |
45451-367-690 |
from US $5.33 |
||
|
2
|
2
50301-268-010 Race, steering ball |
50301-268-010 |
from US $11.84 |
||
|
3
|
3
50302-268-010 Race, steering ball |
50302-268-010 |
from US $11.64 |
||
|
4
|
4
53214-250-000 Dust seal |
53214-250-000 |
US $3.18 |
||
| replacements | |||||
|
4
|
4
53124-250-000 Dust-seal |
53124-250-000 |
from US $3.77 |
||
|
4
|
4
53214-K0T-J00 DUST SEAL |
53214-K0T-J00 |
from US $4.79 |
||
|
5
|
5
53200-323-020-B
Stem,steering
|
53200-323-020-B |
— | ||
|
6
|
6
53211-268-010 Race, steering cone |
53211-268-010 |
from US $14.42 |
||
|
7
|
7
53212-250-010 Race, steering cone |
53212-250-010 |
from US $11.84 |
||
|
8
|
8
53215-250-000 Washer |
53215-250-000 |
from US $3.07 |
||
|
9
|
9
53215-317-000
Cover,lock.case
|
53215-317-000 |
— | ||
|
10
|
10
53220-286-000 Thread (upper) |
53220-286-000 |
from US $21.42 |
||
|
13
|
13
35010-230-010
Switch kit,comb.
|
35010-230-010 |
— | ||
|
14
|
14
53631-268-020
Spring
|
53631-268-020 |
— | ||
|
15
|
15
61100-323-030XW
Fender,front
|
61100-323-030XW |
— | ||
|
16
|
16
61102-300-000 Piece fender |
61102-300-000 |
from US $6.22 |
||
|
17
|
17
61111-323-000
Stay a,fr.fender
|
61111-323-000 |
— | ||
|
18
|
18
61112-323-000
Stay b,fr.fender
|
61112-323-000 |
— | ||
|
19
|
19
90304-415-000 Nut, steering stem |
90304-415-000 |
from US $12.58 |
||
|
20
|
20
90503-283-000 Washer |
90503-283-000 |
from US $4.29 |
||
|
21
|
21
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
22
|
22
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
23
|
23
92101-10035-0A
Bolt, hex. (10x35)
|
92101-10035-0A |
— | ||
|
24
|
24
92201-06025-0A Bolt, hex., 6x25 |
92201-06025-0A |
from US $0.52 |
||
|
25
|
25
93500-030-080-A ScrewPAN, 3X8 |
93500-030-080-A |
from US $0.37 |
||
|
26
|
26
93700-050200B Screw, oval (5x20) |
93700-050200B |
from US $0.58 |
||
|
27
|
27
94001-050-000-S NutHEX., 5MM |
94001-050-000-S |
from US $0.37 |
||
|
28
|
28
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
29
|
29
9410210000 Washer, plain, 10mm |
9410210000 |
from US $0.44 |
||
|
30
|
30
9410103000 Washer, plain, 3mm |
9410103000 |
from US $0.37 |
||
|
31
|
31
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
32
|
32
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
33
|
33
96211-08000 Ball |
96211-08000 |
from US $0.22 |
||
