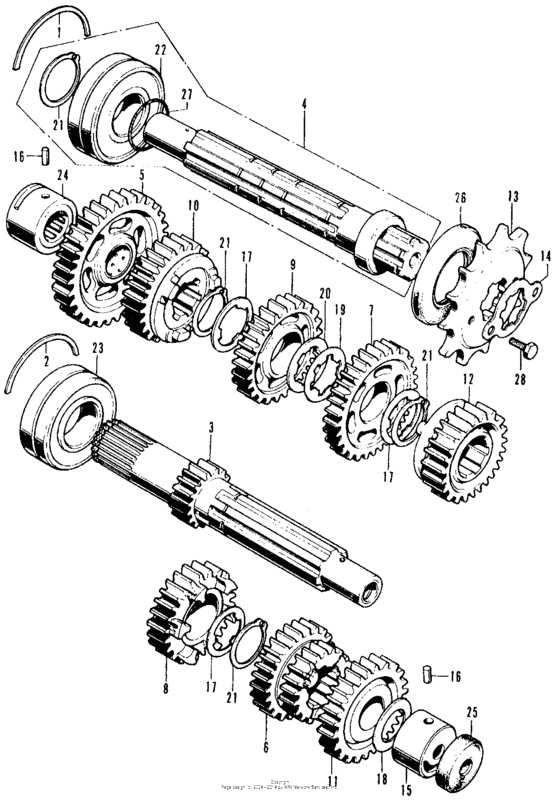

Transmission Diagram Honda CB500 CB500
- Model code
- CB500K2 A
- Sales region
- USA
- Frame
- CB5002100001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13491-283-000
Ring
|
13491-283-000 |
— | ||
|
2
|
2
95015-25200 Set ring, 520 |
95015-25200 |
US $1.48 |
||
|
3
|
3
23210-323-000
Mainshaft,trns
|
23210-323-000 |
— | ||
|
4
|
4
23220-323-000
Countershaft,trns
|
23220-323-000 |
— | ||
|
5
|
5
23420-323-010
Gear,low,ct/shaft
|
23420-323-010 |
— | ||
|
6
|
6
23431-323-000
Gear,2nd & third
|
23431-323-000 |
— | ||
|
7
|
7
23441-286-020 Gear c2 |
23441-286-020 |
US $118.54 |
||
|
8
|
8
23451-323-000
Gear,mainshaft
|
23451-323-000 |
— | ||
|
9
|
9
234A1-390-315
Shaft,gear set
|
234A1-390-315 |
— | ||
|
9
|
9
23461-286-030
Gear c3
|
23461-286-030 |
— | ||
|
10
|
10
234A1-390-315
Shaft,gear set
|
234A1-390-315 |
— | ||
|
11
|
11
23481-323-000 Gear,m/shaft top |
23481-323-000 |
US $119.88 |
||
|
12
|
12
23491-374-000
Gear,ct/shaft.top
Use up to Engine SN 2150031 |
23491-374-000 |
— | ||
|
13
|
13
23801-300-010
Sprocket,drive
|
23801-300-010 |
— | ||
|
14
|
14
23811-292-000 Plate,fixing |
23811-292-000 |
from US $3.62 |
||
|
15
|
15
23931-323-004
Needle brg
|
23931-323-004 |
— | ||
|
16
|
16
24261-283-000 Pin |
24261-283-000 |
from US $4.22 |
||
|
17
|
17
90451-286-000
Washer thrust 25
|
90451-286-000 |
— | ||
|
18
|
18
90458-292-000 Washer, thrust, 20mm |
90458-292-000 |
from US $3.55 |
||
|
19
|
19
90461-286-000 Washer b (25mm) |
90461-286-000 |
US $4.74 |
||
|
20
|
20
90462-323-000 Washer, lock (25mm) |
90462-323-000 |
from US $3.26 |
||
|
21
|
21
90602-259-010 Circlip (25mm) |
90602-259-010 |
from US $3.85 |
||
|
22
|
22
91002-283-000
B/brg n/rad n/com
|
91002-283-000 |
— | ||
|
23
|
23
91002-286-008
B/brg n/rad n/com
|
91002-286-008 |
— | ||
|
24
|
24
91022-286-004
Needle brg
|
91022-286-004 |
— | ||
|
25
|
25
91203-292-005 Oil seal 8x34x8 |
91203-292-005 |
from US $10.33 |
||
|
26
|
26
91205-283-015 Oil seal,33x57x7 |
91205-283-015 |
from US $13.18 |
||
|
27
|
27
91306-703-000
O ring,24.5mm
|
91306-703-000 |
— | ||
|
28
|
28
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
28
|
28
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
28
|
28
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
