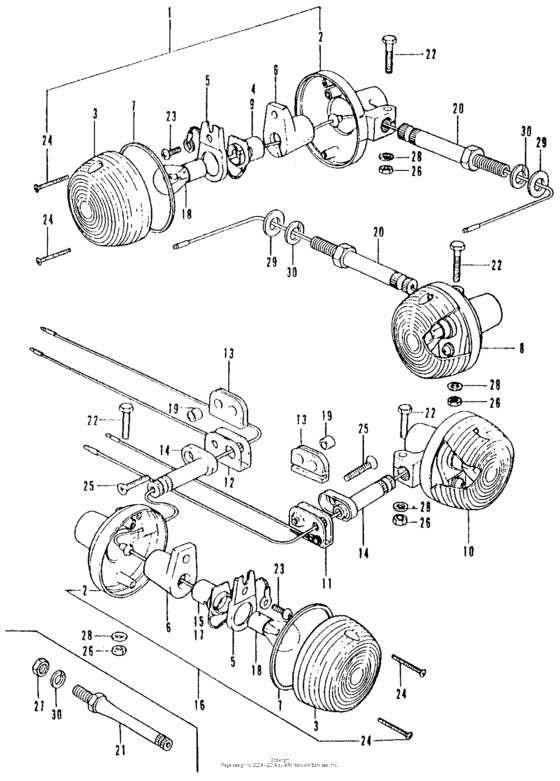

Turn signal Diagram Honda CB500 CB500
- Model code
- CB500K2 A
- Sales region
- USA
- Frame
- CB5002100001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33400-323-709
Winker assy 74ie
|
33400-323-709 |
— | ||
|
2
|
2
33401-341-701 Base,winker |
33401-341-701 |
from US $40.94 |
||
|
3
|
3
33402-268-672 Lens,winker |
33402-268-672 |
from US $10.66 |
||
|
4
|
4
33402-323-700 Socket, r. fr. |
33402-323-700 |
US $10.54 |
||
|
5
|
5
33407-284-003
Socket,winker
|
33407-284-003 |
— | ||
|
6
|
6
33408-341-701
Rubber,winker
|
33408-341-701 |
— | ||
|
7
|
7
33443-268-671 Packing,lens |
33443-268-671 |
from US $2.44 |
||
|
8
|
8
33400-323-709
Winker assy 74ie
|
33400-323-709 |
— | ||
|
9
|
9
33453-323-700
Socket, l.
|
33453-323-700 |
— | ||
|
10
|
10
33600-415-000 Winker,r rr |
33600-415-000 |
US $42.21 |
||
| replacement | |||||
|
10
|
10
33600-306-679 Winker assy 74ie |
33600-306-679 |
from US $60.55 |
||
|
10
|
10
33600-306-679 Winker assy 74ie |
33600-306-679 |
from US $60.55 |
||
|
10
|
10
33650-306-670 L,winker,assy |
33650-306-670 |
US $42.21 |
||
| replacement | |||||
|
10
|
10
33600-306-679 Winker assy 74ie |
33600-306-679 |
from US $60.55 |
||
|
11
|
11
33604-323-670
Stopper,r winker
|
33604-323-670 |
— | ||
|
12
|
12
33605-323-670
Stopper,l winker
|
33605-323-670 |
— | ||
|
13
|
13
33606-074-010 Mount rumber |
33606-074-010 |
from US $5.18 |
||
|
14
|
14
33607-323-670
Stay,rear winker
|
33607-323-670 |
— | ||
|
15
|
15
33610-300-000
Socket r rear
|
33610-300-000 |
— | ||
|
16
|
16
33600-306-679 Winker assy 74ie |
33600-306-679 |
from US $60.55 |
||
|
17
|
17
33660-300-000
Socket l rear
|
33660-300-000 |
— | ||
|
18
|
18
34905-268-671 Bulb (12v23w32cp) |
34905-268-671 |
from US $3.26 |
||
|
19
|
19
80108-061-010 Collar a, rr. fender |
80108-061-010 |
from US $3.40 |
||
|
21
|
21
90154-455-670
Bolt,fr.winker
|
90154-455-670 |
— | ||
|
22
|
22
93101-060-280-B Bolt,hex.,6x28 |
93101-060-280-B |
from US $0.67 |
||
|
23
|
23
93500-050-080-A ScrewPAN, 5X8 |
93500-050-080-A |
from US $0.37 |
||
|
24
|
24
93700-030-253-B Screw cross 3x25 |
93700-030-253-B |
US $0.52 |
||
|
25
|
25
93700-060250B Screw, oval (6x25) |
93700-060250B |
from US $0.74 |
||
|
26
|
26
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
27
|
27
94001-100-000-S NutHEX., 10MM |
94001-100-000-S |
from US $0.44 |
||
|
28
|
28
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
30
|
30
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
