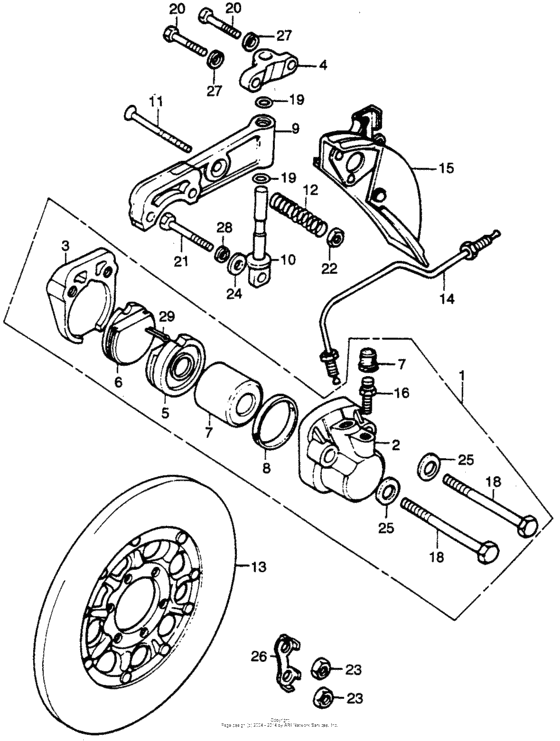

Front brake caliper + disc Diagram Honda CB500 CB500
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T1000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06455-390-405
Pad, set brake
|
06455-390-405 |
— | ||
|
1
|
1
45100-390-405
Caliper assy
|
45100-390-405 |
— | ||
|
2
|
2
45101-323-013
Caliper a
|
45101-323-013 |
— | ||
|
3
|
3
45102-323-003
Caliper b
|
45102-323-003 |
— | ||
|
4
|
4
45104-317-700
Joint,caliper
|
45104-317-700 |
— | ||
|
5
|
5
45105-390-305 Pad comp, a(niss) |
45105-390-305 |
US $55.35 |
||
|
6
|
6
45106-390-305 Pad,comp,b |
45106-390-305 |
US $55.35 |
||
|
7
|
7
45107-323-020 Piston comp |
45107-323-020 |
US $56.98 |
||
|
8
|
8
45108-300-003 Seal piston |
45108-300-003 |
from US $10.36 |
||
|
9
|
9
45115-323-010
Holder,caliper
|
45115-323-010 |
— | ||
|
10
|
10
45116-367-690
Pin,caliper
|
45116-367-690 |
— | ||
|
11
|
11
45117-341-700 Bolt,caliper adj. |
45117-341-700 |
from US $9.27 |
||
|
12
|
12
45119-333-000
Spring,caliper
|
45119-333-000 |
— | ||
|
13
|
13
45120-374-700
Brake,front disk
|
45120-374-700 |
— | ||
|
14
|
14
45128-323-020 Pipe,front brake |
45128-323-020 |
from US $17.14 |
||
|
15
|
15
45140-333-000
Cover,disk
|
45140-333-000 |
— | ||
|
16
|
16
45224-579-013 Valve,bleeder |
45224-579-013 |
from US $11.54 |
||
|
17
|
17
45225-579-013 Cap |
45225-579-013 |
from US $2.59 |
||
|
18
|
18
90165-323-000 Bolt,caliper |
90165-323-000 |
from US $10.36 |
||
|
19
|
19
91259-333-000 O-ring (9.5x1.7) |
91259-333-000 |
from US $4.29 |
||
|
20
|
20
92201-06025-0A Bolt, hex., 6x25 |
92201-06025-0A |
from US $0.52 |
||
|
21
|
21
92201-08035-0A Bolt, hex., 8x35 |
92201-08035-0A |
from US $0.59 |
||
|
22
|
22
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
23
|
23
94001-080-200-S Nut,hex 8m/m |
94001-080-200-S |
from US $0.52 |
||
|
24
|
24
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
25
|
25
9410210000 Washer, plain, 10mm |
9410210000 |
from US $0.44 |
||
|
26
|
26
94108-18000 Washer a8,tongued |
94108-18000 |
US $0.89 |
||
|
27
|
27
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
28
|
28
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
29
|
29
94201-16220 Pin cotter 1.6mm |
94201-16220 |
from US $0.44 |
