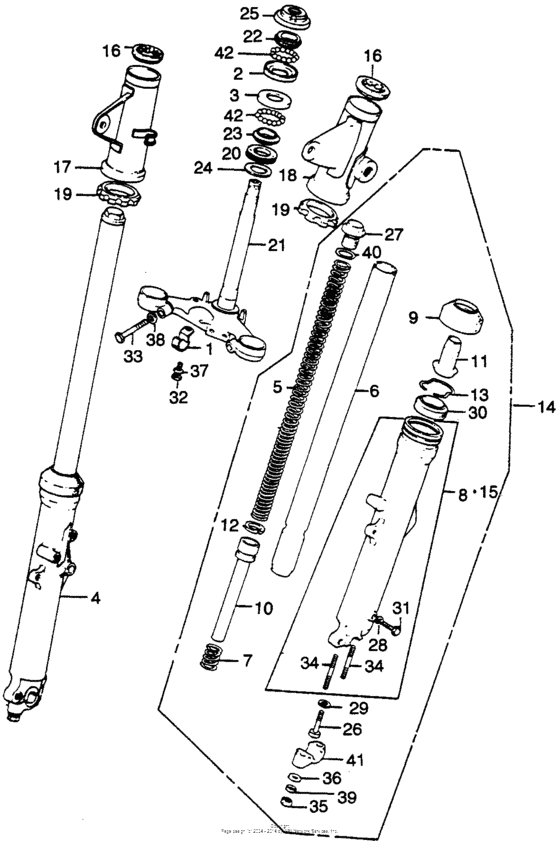

Front fork + steering stem Diagram Honda CB500 CB500
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T1000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32123-375-000
Clip d,harness
|
32123-375-000 |
— | ||
|
2
|
2
50301-268-010 Race, steering ball |
50301-268-010 |
from US $11.84 |
||
|
3
|
3
50302-268-010 Race, steering ball |
50302-268-010 |
from US $11.64 |
||
|
4
|
4
51400-375-010
Fork assy., r. fr.
|
51400-375-010 |
— | ||
|
5
|
5
51401-374-003
Spring,frontcush.
|
51401-374-003 |
— | ||
|
6
|
6
51410-375-010
Pipe,fr.fork
|
51410-375-010 |
— | ||
|
7
|
7
51412-340-000 Spring, fr |
51412-340-000 |
from US $4.14 |
||
|
8
|
8
51421-375-000
Case,r fr bottom
|
51421-375-000 |
— | ||
|
9
|
9
51425-375-003 Dust seal,fr fork |
51425-375-003 |
US $27.06 |
||
|
10
|
10
51430-375-000
Pipe (lower)
|
51430-375-000 |
— | ||
|
11
|
11
51432-357-000
Piece,oil lock
|
51432-357-000 |
— | ||
|
12
|
12
51437-329-010 Ring,piston |
51437-329-010 |
from US $8.44 |
||
|
13
|
13
51447-KL4-951 Ring |
51447-KL4-951 |
from US $2.66 |
||
|
14
|
14
51500-375-010
Fork,l fr
|
51500-375-010 |
— | ||
|
15
|
15
51521-375-000
Case,l fr bottom
|
51521-375-000 |
— | ||
|
16
|
16
51601-300-000 Cushion fork |
51601-300-000 |
from US $14.28 |
||
|
17
|
17
51602-375-000
Cover,r fr fork
|
51602-375-000 |
— | ||
|
18
|
18
51606-375-000
Cover,l fr fork
|
51606-375-000 |
— | ||
|
19
|
19
51622-323-000 Cushion b,cover |
51622-323-000 |
US $9.28 |
||
|
20
|
20
53214-250-000 Dust seal |
53214-250-000 |
US $3.18 |
||
| replacements | |||||
|
20
|
20
53124-250-000 Dust-seal |
53124-250-000 |
from US $3.77 |
||
|
20
|
20
53214-K0T-J00 DUST SEAL |
53214-K0T-J00 |
from US $4.79 |
||
|
21
|
21
53200-375-010-B
Stem, steering *nh1*
|
53200-375-010-B |
— | ||
|
22
|
22
53211-268-010 Race, steering cone |
53211-268-010 |
from US $14.42 |
||
|
23
|
23
53212-250-010 Race, steering cone |
53212-250-010 |
from US $11.84 |
||
|
24
|
24
53215-250-000 Washer |
53215-250-000 |
from US $3.07 |
||
|
25
|
25
53220-286-000 Thread (upper) |
53220-286-000 |
from US $21.42 |
||
|
26
|
26
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
27
|
27
90123-300-000 Bolt,front fork |
90123-300-000 |
from US $39.30 |
||
|
28
|
28
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
29
|
29
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
30
|
30
91255-KBH-003 Seal,oil,35x48x11 |
91255-KBH-003 |
from US $11.99 |
||
|
31
|
31
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
32
|
32
92101-08016-0A Bolt, hex., 8x16 |
92101-08016-0A |
from US $0.52 |
||
|
33
|
33
92101-10040-0A Bolt, hex. (10x40) |
92101-10040-0A |
from US $0.74 |
||
|
34
|
34
92900-08028-3B Bolt, stud (8x50) |
92900-08028-3B |
from US $0.74 |
||
|
35
|
35
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
36
|
36
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
37
|
37
94102-08000 Washer, plain, 8mm |
94102-08000 |
from US $0.37 |
||
|
38
|
38
9410210000 Washer, plain, 10mm |
9410210000 |
from US $0.44 |
||
|
39
|
39
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
40
|
40
9460850000 O-ring, 23x2.8 |
9460850000 |
from US $0.89 |
||
|
41
|
41
95014-41000 Holder,axle |
95014-41000 |
from US $7.70 |
||
|
42
|
42
96211-08000 Ball |
96211-08000 |
from US $0.22 |
||
