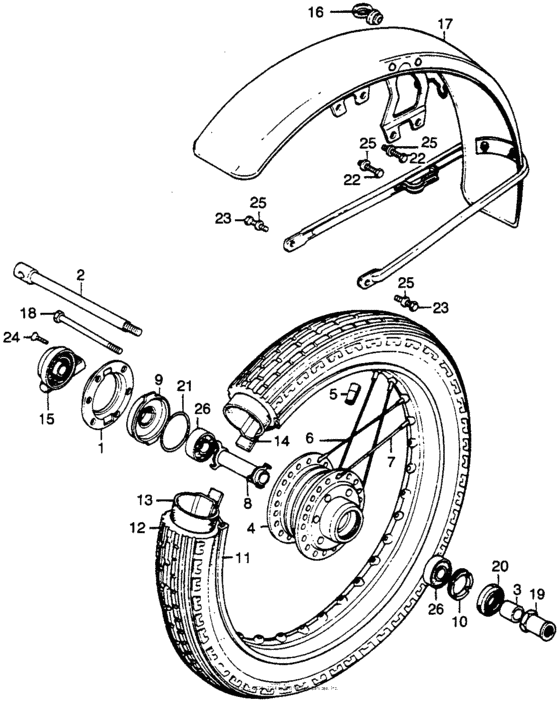

Front wheel + front fender Diagram Honda CB500 CB500
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T1000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44064-300-000
Retainer,gear box
|
44064-300-000 |
— | ||
|
2
|
2
44301-425-870
Axle,fr.wheel
|
44301-425-870 |
— | ||
|
3
|
3
44311-300-000
Collar fr wheel
|
44311-300-000 |
— | ||
| replacement | |||||
|
3
|
3
44311-371-980
Collar,wheel side
|
44311-371-980 |
— | ||
|
4
|
4
44601-300-040
Hub,front.wheel
|
44601-300-040 |
— | ||
|
5
|
5
44606-283-000 Balancer (20g) |
44606-283-000 |
from US $6.48 |
||
|
5
|
5
44607-283-000 Balancer, wheel |
44607-283-000 |
from US $6.79 |
||
|
5
|
5
44608-283-000 Balancer, wheel |
44608-283-000 |
US $42.70 |
||
|
5
|
5
44609-283-000 Balancer, wheel |
44609-283-000 |
US $5.12 |
||
|
6
|
6
97451-692-461-0 Spoke, bs 8x203 |
97451-692-461-0 |
from US $2.89 |
||
|
7
|
7
97B11-692-451-0 Spoke, bs 8x202.5 |
97B11-692-451-0 |
from US $2.89 |
||
|
8
|
8
44620-300-020
Collar fr axle
|
44620-300-020 |
— | ||
|
9
|
9
44641-375-000
Retainer,gear box
|
44641-375-000 |
— | ||
|
10
|
10
44643-300-000 Retainer fr wheel |
44643-300-000 |
from US $14.06 |
||
|
11
|
11
44701-405-771 Rim,fr.wheel |
44701-405-771 |
US $201.28 |
||
|
12
|
12
44711-341-003 Tire325h194ps21f2 |
44711-341-003 |
US $111.42 |
||
|
13
|
13
44712-110-003
Tube,fr.wheel
|
44712-110-003 |
— | ||
|
14
|
14
44713-MR1-671 Flap (100/90-19) |
44713-MR1-671 |
US $10.29 |
||
|
15
|
15
44800-323-000
Box,spdmt gear
|
44800-323-000 |
— | ||
|
16
|
16
45451-367-690 Grommet, wire |
45451-367-690 |
from US $5.33 |
||
|
17
|
17
61100-375-000
Fender,front
|
61100-375-000 |
— | ||
|
18
|
18
90122-300-020 Bolt,8x102 |
90122-300-020 |
US $13.52 |
||
|
19
|
19
90306-425-870
Nut,axle,12mm
|
90306-425-870 |
— | ||
|
20
|
20
91252-300-003 Dust,seal |
91252-300-003 |
from US $10.06 |
||
|
21
|
21
91302-300-000 O ring,58x2 |
91302-300-000 |
from US $9.78 |
||
|
22
|
22
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
23
|
23
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
24
|
24
93700-050160A Screw, oval (5x16) |
93700-050160A |
from US $0.37 |
||
|
25
|
25
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
26
|
26
96150-6302010 Bearing (6302uu) |
96150-6302010 |
from US $9.18 |
||
