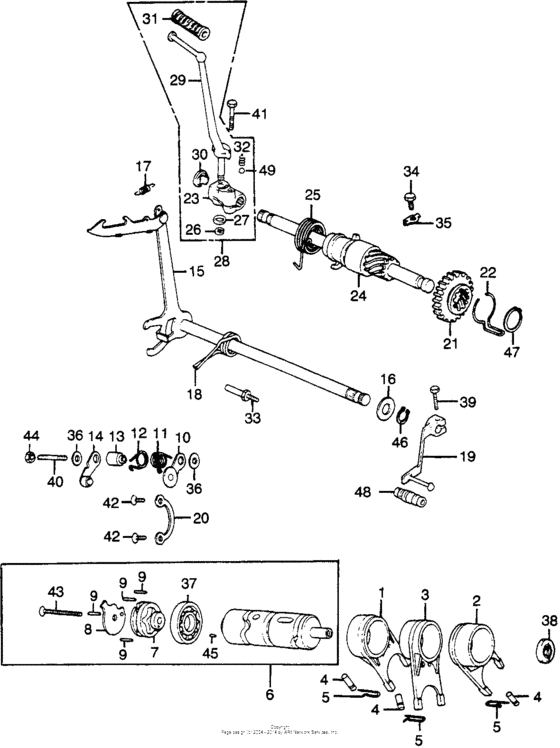

Kick starter + side spindle Diagram Honda CB500 CB500
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T1000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24211-292-020
Fork,gear shift
|
24211-292-020 |
— | ||
|
2
|
2
24221-292-020
Fork,gear shift
|
24221-292-020 |
— | ||
|
3
|
3
24231-292-030
Fork,gear shift
|
24231-292-030 |
— | ||
|
4
|
4
24261-356-000
Pin,shiftforkguid
|
24261-356-000 |
— | ||
|
5
|
5
24263-028-000 Clip |
24263-028-000 |
from US $2.15 |
||
|
6
|
6
24300-375-000
Drum,gear shift
|
24300-375-000 |
— | ||
|
7
|
7
24304-292-350
Center gear shift
|
24304-292-350 |
— | ||
|
8
|
8
24305-375-300
Plate,stopper cam
|
24305-375-300 |
— | ||
|
9
|
9
24306-235-300
Pin, gearshift drum
|
24306-235-300 |
— | ||
|
10
|
10
24430-375-000
Stopper,drum
|
24430-375-000 |
— | ||
|
11
|
11
24435-319-000
Spring,shiftdrum
|
24435-319-000 |
— | ||
|
12
|
12
24436-319-000
Spring,neutral
|
24436-319-000 |
— | ||
|
13
|
13
24438-292-010
Coller,stopper
|
24438-292-010 |
— | ||
|
14
|
14
24440-292-010
Stopper,neutral
|
24440-292-010 |
— | ||
|
15
|
15
24610-292-040
Spindle,gearshift
|
24610-292-040 |
— | ||
|
16
|
16
24621-200-000
Stopper, spindle
|
24621-200-000 |
— | ||
|
17
|
17
24641-292-000
Spring,shift arm
|
24641-292-000 |
— | ||
|
18
|
18
24651-319-000
Spring,gearreturn
|
24651-319-000 |
— | ||
|
19
|
19
24701-375-000
Pedal,gear change
|
24701-375-000 |
— | ||
|
20
|
20
24710-235-000
Plate,bearing set
|
24710-235-000 |
— | ||
|
21
|
21
28212-292-040 Pinion,kick |
28212-292-040 |
US $76.55 |
||
|
22
|
22
28239-292-000
Spring,friction
|
28239-292-000 |
— | ||
|
23
|
23
28241-344-000
Joint,kick arm
|
28241-344-000 |
— | ||
|
24
|
24
28250-292-010
Spindle,comp,kick
|
28250-292-010 |
— | ||
|
25
|
25
28261-292-000
Spring,starter
|
28261-292-000 |
— | ||
|
26
|
26
28293-333-000 Clip |
28293-333-000 |
from US $2.66 |
||
|
27
|
27
28294-333-000
Washer,kick arm
|
28294-333-000 |
— | ||
|
28
|
28
28300-375-000
Arm,kick starter
|
28300-375-000 |
— | ||
|
29
|
29
28301-375-000
Arm,kick starter
|
28301-375-000 |
— | ||
|
30
|
30
28305-310-000
Cap,kick arm
|
28305-310-000 |
— | ||
|
31
|
31
28311-329-000 Rubber,kick |
28311-329-000 |
from US $7.84 |
||
|
32
|
32
28333-310-000
Spring,kick
|
28333-310-000 |
— | ||
|
33
|
33
90015-286-000
Pin,return spring
|
90015-286-000 |
— | ||
|
34
|
34
90081-283-000
Bolt, 8mm
|
90081-283-000 |
— | ||
|
35
|
35
90432-283-010
Washer, lock, 8mm
|
90432-283-010 |
— | ||
|
36
|
36
90453-292-010 Washer, shift drum stopper |
90453-292-010 |
US $8.47 |
||
|
37
|
37
91001-235-300
Bearing (16004)
|
91001-235-300 |
— | ||
|
38
|
38
91202-426-003 Oilseal,12x25x4.5 |
91202-426-003 |
from US $5.92 |
||
|
39
|
39
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
40
|
40
92900-06032-0E Bolt 2, stud (6x32) |
92900-06032-0E |
from US $0.89 |
||
|
41
|
41
93000-080-320-A Bolt hex 8x32 |
93000-080-320-A |
US $0.59 |
||
|
42
|
42
93600-060-120-A ScrewFLAT, 6X12 |
93600-060-120-A |
from US $0.47 |
||
|
43
|
43
93600-060400A Screw, flat (6x40) |
93600-060400A |
from US $0.52 |
||
|
44
|
44
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
45
|
45
94302-04080
Pin, knock, 4x8
|
94302-04080 |
— | ||
|
46
|
46
94510-12000 CirclipEXTERNAL, 12MM |
94510-12000 |
from US $0.44 |
||
|
47
|
47
9451025000 Circlip, external, 25mm |
9451025000 |
from US $0.59 |
||
|
48
|
48
9501140000 Rubber, shift pedal |
9501140000 |
from US $0.74 |
||
|
49
|
49
96211-08000 Ball |
96211-08000 |
from US $0.22 |
