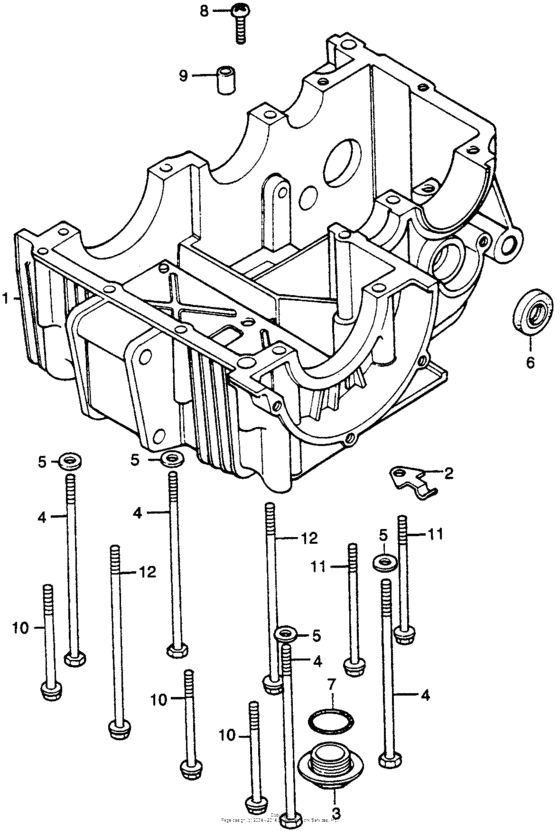

Lower crankcase Diagram Honda CB500 CB500
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T1000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-375-010
Crankcase (lower)
|
11200-375-010 |
— | ||
|
2
|
2
32911-283-000
Clamper
|
32911-283-000 |
— | ||
|
3
|
3
90013-312-000
Bolt,drain.cock
|
90013-312-000 |
— | ||
|
4
|
4
90085-292-000 Bolt, hex. (8x132) |
90085-292-000 |
from US $7.25 |
||
|
5
|
5
90441-286-000 Washer, sealing, 8mm |
90441-286-000 |
from US $2.59 |
||
|
6
|
6
91202-426-003 Oilseal,12x25x4.5 |
91202-426-003 |
from US $5.92 |
||
|
7
|
7
91304-HB3-003 O-ring (33.5x3.0) |
91304-HB3-003 |
from US $5.62 |
||
|
8
|
8
93500-060-160-A ScrewPAN, 6X16 |
93500-060-160-A |
from US $0.44 |
||
|
9
|
9
94301-10140 Pin aDOWEL, 10X14 |
94301-10140 |
from US $1.04 |
||
|
10
|
10
95701-0608000 Bolt, flange (6x80) |
95701-0608000 |
from US $0.86 |
||
|
11
|
11
95701-0609000 Bolt, flange, 6x90 |
95701-0609000 |
from US $0.89 |
||
|
12
|
12
95701-0612500 Bolt, flange, 6x125 |
95701-0612500 |
US $1.48 |
