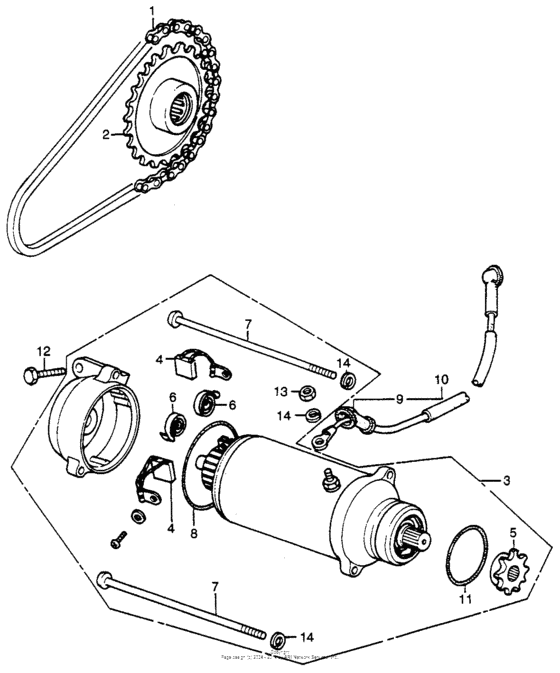

Starter motor Diagram Honda CB500 CB500
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T1000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28101-283-003
Chain,starting
|
28101-283-003 |
— | ||
|
2
|
2
28110-375-000
Sprocket,starting
|
28110-375-000 |
— | ||
|
3
|
3
31200-292-158
Motor,starting
|
31200-292-158 |
— | ||
|
4
|
4
31201-292-158 Brush.set,motor |
31201-292-158 |
from US $31.88 |
||
|
5
|
5
31202-500-154
Sprocket
|
31202-500-154 |
— | ||
|
6
|
6
31204-292-158 Spring, carbon brush |
31204-292-158 |
from US $6.07 |
||
|
7
|
7
31205-286-158
Set bt.gear cover
|
31205-286-158 |
— | ||
|
8
|
8
31206-402-008 O-ring (60x1.4) |
31206-402-008 |
US $11.40 |
||
|
9
|
9
32411-230-000 Cover |
32411-230-000 |
from US $5.33 |
||
|
10
|
10
32411-319-000
Cable,starting
|
32411-319-000 |
— | ||
|
11
|
11
91309-MA6-000 O-ring |
91309-MA6-000 |
from US $3.63 |
||
|
12
|
12
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
13
|
13
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
14
|
14
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
