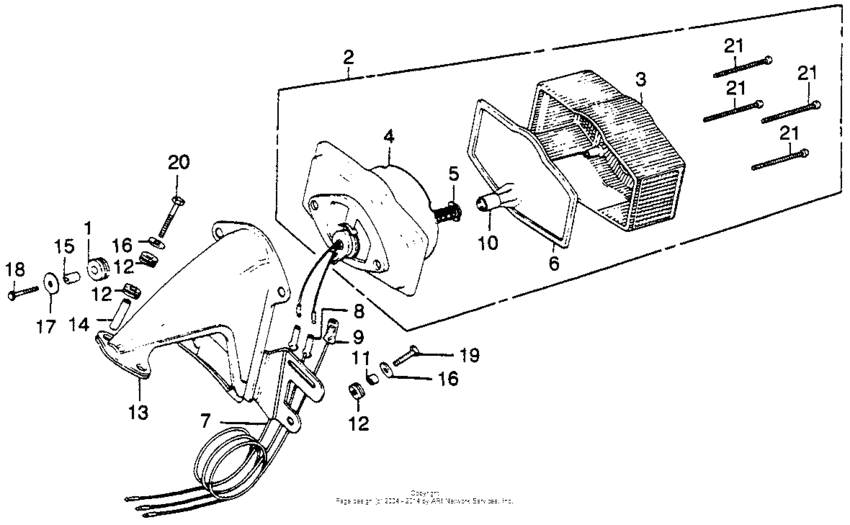

Taillight Diagram Honda CB500 CB500
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T1000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31403-323-000 Rubber |
31403-323-000 |
from US $5.03 |
||
|
2
|
2
33701-354-670
Unit, tail light
|
33701-354-670 |
— | ||
|
3
|
3
33702-341-671 Lens,tail light |
33702-341-671 |
from US $56.29 |
||
|
4
|
4
33703-354-670
Base.,tail light
|
33703-354-670 |
— | ||
|
5
|
5
33708-098-000 Wire, taillight |
33708-098-000 |
US $7.84 |
||
|
6
|
6
33709-341-671
Packing,tail lt.
|
33709-341-671 |
— | ||
|
7
|
7
33710-342-670 Cord,stop light |
33710-342-670 |
US $9.35 |
||
|
8
|
8
33711-342-670
Cord,tail light
|
33711-342-670 |
— | ||
|
9
|
9
33712-342-670
Cord,tail earth
|
33712-342-670 |
— | ||
|
10
|
10
34906-MG9-771 Bulb (12v27/7w) |
34906-MG9-771 |
from US $5.10 |
||
|
11
|
11
35851-292-000
Collar magnetic
|
35851-292-000 |
— | ||
|
12
|
12
80101-283-000 Rubber, rr. fender cushion |
80101-283-000 |
from US $4.29 |
||
|
13
|
13
84701-341-670XW
Bracket,no.plate
|
84701-341-670XW |
— | ||
|
14
|
14
84706-375-000
Collar,number set
|
84706-375-000 |
— | ||
|
15
|
15
84706-378-000
Collar,tail light
|
84706-378-000 |
— | ||
|
16
|
16
90525-030-000 Washer b, handle holder setting |
90525-030-000 |
from US $2.59 |
||
|
17
|
17
90581-310-000 Washer,18m/m |
90581-310-000 |
from US $2.74 |
||
|
18
|
18
92101-05025-0A Bolt, hex. (5x25) |
92101-05025-0A |
from US $0.47 |
||
|
19
|
19
92101-06020-0B Bolt, hex. (6x20) |
92101-06020-0B |
from US $0.59 |
||
|
20
|
20
92000-06028-02 Bolt, hex., 6x28 |
92000-06028-02 |
US $1.97 |
||
| replacement | |||||
|
20
|
20
92201-06028-0B Bolt,hex.6x28 |
92201-06028-0B |
from US $0.74 |
||
|
21
|
21
93500-040-550-B Screw,pan,4x55 |
93500-040-550-B |
from US $0.59 |
||
