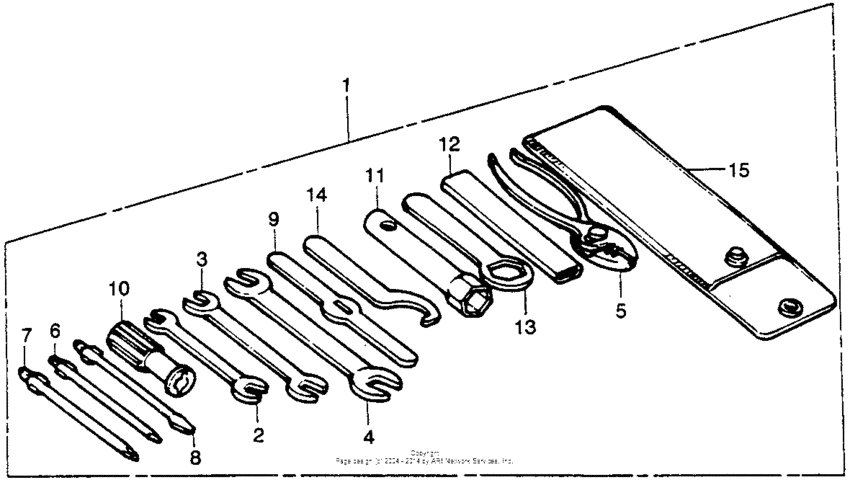

Tool set Diagram Honda CB500 CB500
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T1000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89010-375-000
Tool assy
|
89010-375-000 |
— | ||
|
2
|
2
9900108120 Spanner, 8x12 |
9900108120 |
from US $3.11 |
||
|
3
|
3
9900110140 Spanner, 10x14 |
9900110140 |
from US $3.55 |
||
|
4
|
4
99001-17190 Spanner, 17x19 |
99001-17190 |
from US $4.59 |
||
|
5
|
5
99002-13500
Pliers
|
99002-13500 |
— | ||
| replacement | |||||
|
5
|
5
89210-GBJ-J10 Pliers, 135 (kowa) |
89210-GBJ-J10 |
from US $8.88 |
||
|
6
|
6
99003-10000 Driver1PLUS SCREW(NO.2) |
99003-10000 |
from US $1.41 |
||
|
7
|
7
9900320000 Driver 2, plus screw (no.3) |
9900320000 |
from US $1.55 |
||
|
8
|
8
99003-30000 Driver 3MINUS SCREW (NO.2) |
99003-30000 |
from US $1.41 |
||
|
9
|
9
9900340000 Lever |
9900340000 |
from US $0.98 |
||
|
10
|
10
99003-50000 GripSCREW DRIVER |
99003-50000 |
from US $1.70 |
||
|
11
|
11
99004-21001 Wrench, box (p21) |
99004-21001 |
from US $4.29 |
||
|
12
|
12
99006-12000 Handle (12mm) |
99006-12000 |
from US $4.29 |
||
|
13
|
13
99006-26000
Eye,wrench,26
|
99006-26000 |
— | ||
|
14
|
14
99007-45000 Spanner,pin,45mm |
99007-45000 |
from US $4.51 |
||
|
15
|
15
89101-ME5-670
Bag, tool
|
89101-ME5-670 |
— | ||
