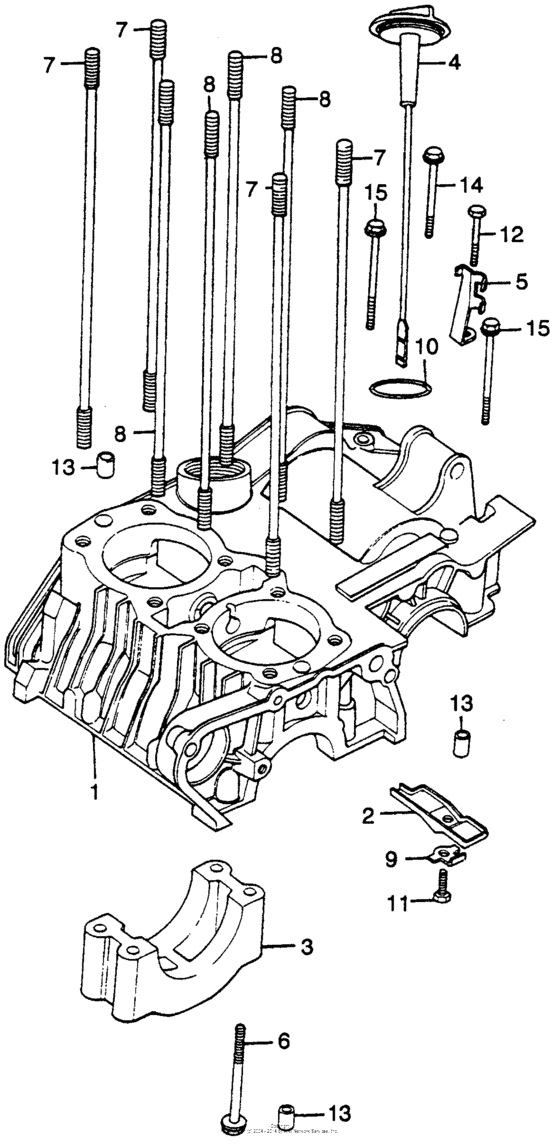

Upper crankcase Diagram Honda CB500 CB500
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T1000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-375-010
Crankcase (upper)
|
11100-375-010 |
— | ||
|
2
|
2
11110-375-000
Plate, c/shf oil gd
|
11110-375-000 |
— | ||
|
3
|
3
13401-375-000
Cap, center bearing
|
13401-375-000 |
— | ||
|
4
|
4
15650-292-010
Gauge,oil level
|
15650-292-010 |
— | ||
|
5
|
5
32921-283-010
Clamper, dynamo
|
32921-283-010 |
— | ||
|
6
|
6
90007-634-000 BoltFLANGE, 8X70 |
90007-634-000 |
US $3.57 |
||
|
7
|
7
90031-292-000
Bolt,cylinderstud
|
90031-292-000 |
— | ||
|
8
|
8
90032-292-000
Bolt,cylinderstud
|
90032-292-000 |
— | ||
|
9
|
9
90433-283-000
Washer, lock, 6mm
|
90433-283-000 |
— | ||
|
10
|
10
91305-KT7-003 O-ring, 37x2.4 (arai) |
91305-KT7-003 |
from US $2.59 |
||
|
11
|
11
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
11
|
11
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
11
|
11
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
12
|
12
92101-06040-0A Bolt, hex., 6x40 |
92101-06040-0A |
US $0.52 |
||
|
13
|
13
94301-10140 Pin aDOWEL, 10X14 |
94301-10140 |
from US $1.04 |
||
|
14
|
14
95701-0606000 Bolt, flange, 6x60 |
95701-0606000 |
from US $0.49 |
||
|
15
|
15
95701-0608000 Bolt, flange (6x80) |
95701-0608000 |
from US $0.86 |
||
