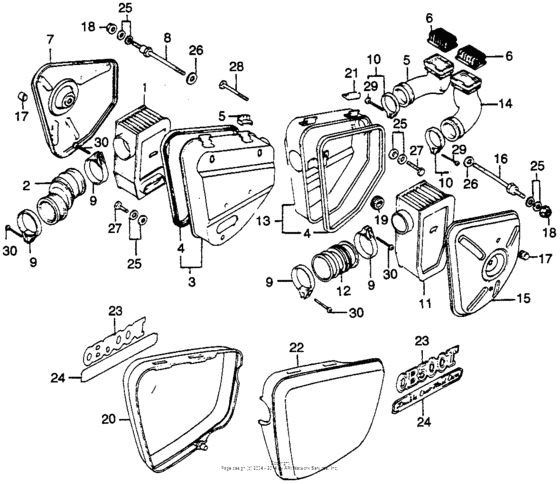

Air cleaner + air cleaner cover Diagram Honda CB500 CB500
- Year
- 1976
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T2000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17211-375-000
Element,r cleaner
|
17211-375-000 |
— | ||
|
2
|
2
17212-375-000
Tube,r cleaner
|
17212-375-000 |
— | ||
|
3
|
3
17220-375-000
Case,r cleaner
|
17220-375-000 |
— | ||
|
4
|
4
17221-375-300
Packing,cleaner
|
17221-375-300 |
— | ||
|
5
|
5
17225-375-000
Tube,right inlet
|
17225-375-000 |
— | ||
|
6
|
6
17226-375-000
Net,air inlet
|
17226-375-000 |
— | ||
|
7
|
7
17230-375-000
Cover,r cleaner
|
17230-375-000 |
— | ||
|
8
|
8
17241-375-000
Bolt,r element
|
17241-375-000 |
— | ||
|
9
|
9
9501856200 Band (56) |
9501856200 |
from US $3.42 |
||
|
10
|
10
9501850250 Band, air cleaner connecting tube (50) |
9501850250 |
from US $3.26 |
||
|
11
|
11
17311-375-000
Element,l cleaner
|
17311-375-000 |
— | ||
|
12
|
12
17312-375-000
Tube,l cleaner
|
17312-375-000 |
— | ||
|
13
|
13
17320-375-000
Case,l cleaner
|
17320-375-000 |
— | ||
|
14
|
14
17325-375-000
Tube,left inlet
|
17325-375-000 |
— | ||
|
15
|
15
17330-375-000
Cover,l cleaner
|
17330-375-000 |
— | ||
|
16
|
16
17341-375-000
Bolt,l element
|
17341-375-000 |
— | ||
|
17
|
17
18362-098-670
Rubber,protector
|
18362-098-670 |
— | ||
|
18
|
18
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
19
|
19
83551-300-000 Grommet, air cleaner case |
83551-300-000 |
from US $1.28 |
||
|
20
|
20
83600-375-000UP
Cover,right side
|
83600-375-000UP |
— | ||
|
20
|
20
83600-375-000ZB
Cover,side*r-6c-s
|
83600-375-000ZB |
— | ||
|
21
|
21
83621-333-000 Grommet,side |
83621-333-000 |
from US $7.25 |
||
|
22
|
22
83700-375-000UP
Cover,left side
|
83700-375-000UP |
— | ||
|
22
|
22
83700-375-000ZB
Cover, l. si *r6cs*
|
83700-375-000ZB |
— | ||
|
23
|
23
87125-375-300
Emblem,side cover
|
87125-375-300 |
— | ||
|
24
|
24
87126-375-300
Mark,side cover
|
87126-375-300 |
— | ||
|
25
|
25
90416-551-000
Washer, sealing, 6mm
|
90416-551-000 |
— | ||
|
26
|
26
90450-ZA0-000 Washer, plain, 6x16 |
90450-ZA0-000 |
US $2.11 |
||
|
27
|
27
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
27
|
27
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
27
|
27
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
28
|
28
92000-06036 Bolt,hex 6x36 |
92000-06036 |
from US $0.52 |
||
| replacement | |||||
|
28
|
28
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
28
|
28
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
29
|
29
93500-040-250-A Screw, pan, 4x25 |
93500-040-250-A |
from US $0.37 |
||
|
30
|
30
93500-050-160-A Screw |
93500-050-160-A |
from US $0.37 |
||
