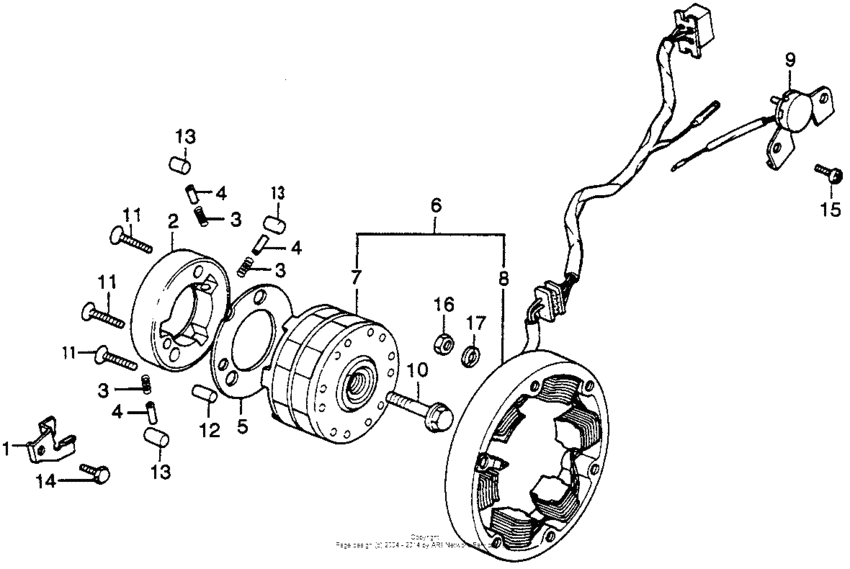

Alternator Diagram Honda CB500 CB500
- Year
- 1976
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T2000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28117-375-000
Plate,sprocket
|
28117-375-000 |
— | ||
|
2
|
2
28120-292-000
Outer,clutch
|
28120-292-000 |
— | ||
|
3
|
3
28125-283-010 Spring, clutch |
28125-283-010 |
US $6.22 |
||
|
4
|
4
28126-292-000 Cap,spring |
28126-292-000 |
from US $11.41 |
||
|
5
|
5
28128-283-010
Plate, clutch
|
28128-283-010 |
— | ||
|
6
|
6
31100-375-003 Generator,a.c |
31100-375-003 |
US $833.78 |
||
|
7
|
7
31110-375-003
Rotor
|
31110-375-003 |
— | ||
|
8
|
8
31120-375-003
Stator
|
31120-375-003 |
— | ||
|
9
|
9
35750-283-000
Switch, neutral
|
35750-283-000 |
— | ||
|
10
|
10
90014-286-000
Bolt,rotor set
|
90014-286-000 |
— | ||
|
11
|
11
90091-286-000
Screw,flat.6x25
|
90091-286-000 |
— | ||
|
12
|
12
90712-500-010 Pin,knock 8x18 |
90712-500-010 |
US $4.34 |
||
|
13
|
13
91101-377-000 Roller (10.2x11.5) |
91101-377-000 |
from US $2.59 |
||
|
14
|
14
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
14
|
14
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
14
|
14
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
15
|
15
9350006010 Screw, pan, 6x10 |
9350006010 |
from US $0.44 |
||
| replacement | |||||
|
15
|
15
93500-060100A Screw, pan, 6x10 |
93500-060100A |
from US $0.44 |
||
|
16
|
16
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
17
|
17
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
