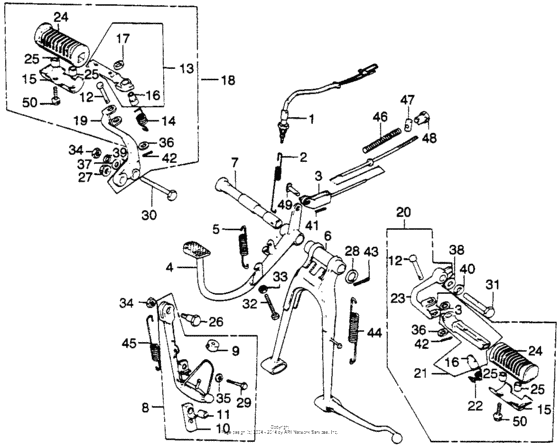

Brake pedal + stand + step Diagram Honda CB500 CB500
- Year
- 1976
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T2000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35350-KJ9-405 Switch assy.,rr.s |
35350-KJ9-405 |
from US $17 |
||
|
2
|
2
35357-292-010
Spring,stopswitch
|
35357-292-010 |
— | ||
|
3
|
3
43451-375-000
Rod,rr brake
|
43451-375-000 |
— | ||
|
4
|
4
46500-375-000
Pedal,rr brake
|
46500-375-000 |
— | ||
|
5
|
5
46514-283-050
Spring, pedal
|
46514-283-050 |
— | ||
|
6
|
6
50500-375-000
Stand comp.,main
|
50500-375-000 |
— | ||
|
7
|
7
50526-457-710
Pipe,main stand
|
50526-457-710 |
— | ||
|
8
|
8
50540-375-010
Stand assy.,side
|
50540-375-010 |
— | ||
|
9
|
9
50543-375-000 Rub.,side stand |
50543-375-000 |
US $6.15 |
||
|
10
|
10
50548-356-700 Rubber, stand |
50548-356-700 |
from US $7.15 |
||
|
11
|
11
50549-356-700 Collar |
50549-356-700 |
from US $2.96 |
||
|
12
|
12
50603-033-010 Pin, step bar joint |
50603-033-010 |
from US $3.70 |
||
|
13
|
13
50616-369-670-B Arm,r.step |
50616-369-670-B |
US $36.58 |
||
|
14
|
14
50617-283-000
Spring, return
|
50617-283-000 |
— | ||
|
15
|
15
50619-375-000
Stopper,step rub.
|
50619-375-000 |
— | ||
|
16
|
16
50620-310-000
Inner pipe,step
|
50620-310-000 |
— | ||
|
17
|
17
50621-310-000
Patch,step
|
50621-310-000 |
— | ||
|
18
|
18
50630-375-000-B
Step assy.,right
|
50630-375-000-B |
— | ||
|
19
|
19
50635-375-000
Bar,r step
|
50635-375-000 |
— | ||
|
20
|
20
50640-375-000-B
Step assy.,left
|
50640-375-000-B |
— | ||
|
21
|
21
50642-369-670-B
Arm,l step
|
50642-369-670-B |
— | ||
|
22
|
22
50644-283-000 Spring, return |
50644-283-000 |
US $4.68 |
||
|
23
|
23
50645-375-000
Bar, l. step
|
50645-375-000 |
— | ||
|
24
|
24
50661-369-000 Rubber,step |
50661-369-000 |
US $38.08 |
||
|
25
|
25
84706-286-000 Collar no bracket |
84706-286-000 |
from US $2.74 |
||
|
26
|
26
90108-283-000 Screw,pivot |
90108-283-000 |
from US $6.96 |
||
|
27
|
27
90309-375-003 Nut, flange (12mm) |
90309-375-003 |
from US $7.40 |
||
|
28
|
28
90512-283-000
Washer, 19mm
|
90512-283-000 |
— | ||
|
29
|
29
92101-06028-0A Bolt, hex. (6x28) |
92101-06028-0A |
from US $0.51 |
||
|
30
|
30
92101-10065-0A Bolt, hex. (10x65) |
92101-10065-0A |
US $1.04 |
||
|
31
|
31
92101-12040-0A Bolt, hex. (12x40) |
92101-12040-0A |
from US $0.89 |
||
|
32
|
32
92030-06032
Bolt,hex.,6x32
|
92030-06032 |
— | ||
|
33
|
33
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
34
|
34
94001-100-000-S NutHEX., 10MM |
94001-100-000-S |
from US $0.44 |
||
|
35
|
35
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
36
|
36
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
37
|
37
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
38
|
38
94101-12000 WasherPLAIN, 12MM |
94101-12000 |
from US $0.52 |
||
|
39
|
39
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
40
|
40
94111-12000 WasherSPRING, 12MM |
94111-12000 |
from US $0.44 |
||
|
41
|
41
94201-16120 PinSPLIT, 1.6X12 |
94201-16120 |
from US $0.37 |
||
|
42
|
42
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
43
|
43
94201-25300 Pin, split, 2.5x30 |
94201-25300 |
from US $0.44 |
||
|
44
|
44
95014-71902 Spring.j, stand |
95014-71902 |
US $3.03 |
||
|
45
|
45
9501472402 Spring d, side stand |
9501472402 |
from US $1.63 |
||
|
46
|
46
9501473100 Spring a, brake rod |
9501473100 |
from US $0.74 |
||
|
47
|
47
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
|
48
|
48
9501542000 Nut b, brake rod adjusting |
9501542000 |
from US $1.48 |
||
|
49
|
49
9501552000 Pin b, brake rod joint |
9501552000 |
from US $1.48 |
||
|
50
|
50
95701-0601800 Bolt, flange, 6x18 |
95701-0601800 |
from US $0.52 |
