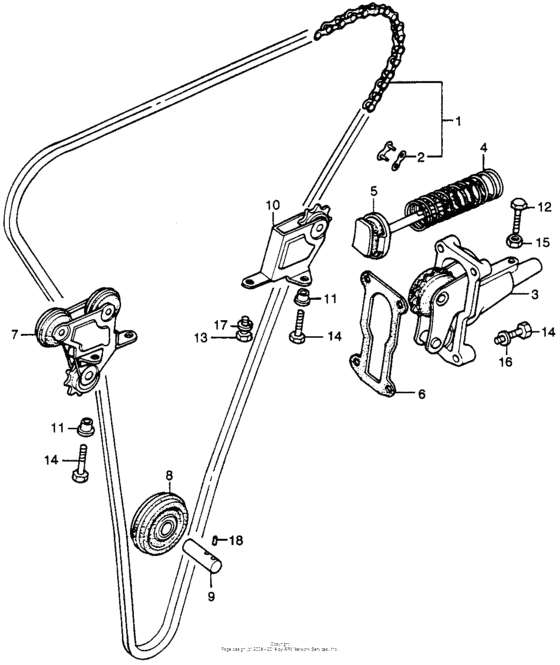

Cam chain + tensioner Diagram Honda CB500 CB500
- Year
- 1976
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T2000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14401-283-003
Chain,cam 128xb
|
14401-283-003 |
— | ||
|
2
|
2
14410-283-000 Joint, cam chain |
14410-283-000 |
from US $6.96 |
||
|
3
|
3
14500-292-000
Tensioner,chain
|
14500-292-000 |
— | ||
|
4
|
4
14541-283-000
Spring, tension
|
14541-283-000 |
— | ||
|
5
|
5
14550-283-000
Bar, push
|
14550-283-000 |
— | ||
|
6
|
6
14591-283-306
Gasket
|
14591-283-306 |
— | ||
|
7
|
7
14610-319-000
Rollar,f.camchain
|
14610-319-000 |
— | ||
|
8
|
8
14630-292-000
Roller,chainguide
|
14630-292-000 |
— | ||
|
9
|
9
14635-283-000 Pin b, cam chin |
14635-283-000 |
US $19.02 |
||
|
10
|
10
14650-319-000 Rollar,r.camchain |
14650-319-000 |
US $166.46 |
||
|
11
|
11
14655-283-000
Pin
|
14655-283-000 |
— | ||
|
12
|
12
90009-259-000
Bolt, tensioner
|
90009-259-000 |
— | ||
|
13
|
13
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
14
|
14
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
15
|
15
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
16
|
16
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
17
|
17
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
18
|
18
94302-04080
Pin, knock, 4x8
|
94302-04080 |
— |
