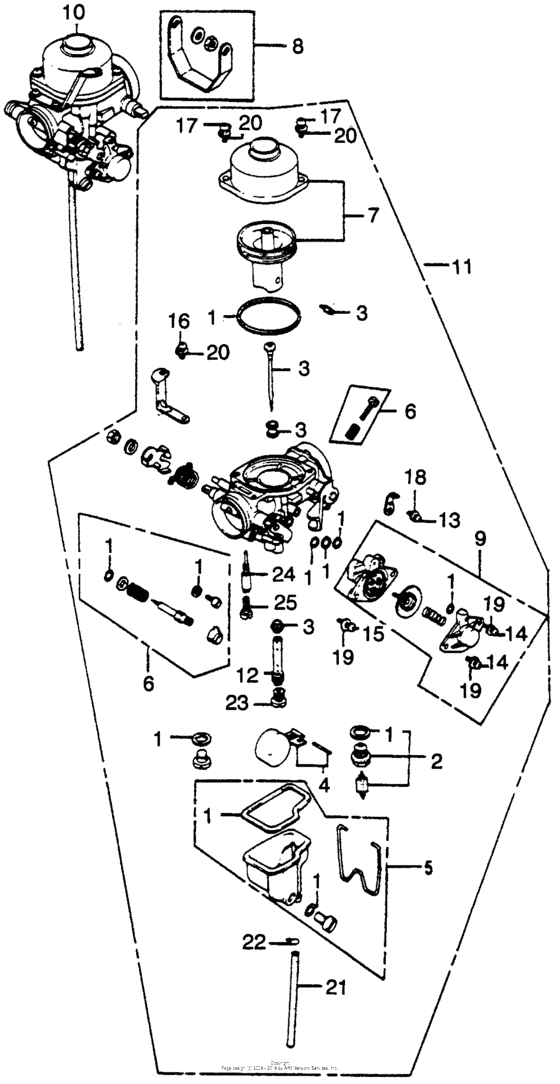

Carburetor Diagram Honda CB500 CB500
- Year
- 1976
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T2000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-375-004
Packing set
|
16010-375-004 |
— | ||
|
2
|
2
16011-375-004 Valve set, float |
16011-375-004 |
from US $22.40 |
||
|
3
|
3
16012-346-004
Needle,set,jet
|
16012-346-004 |
— | ||
|
4
|
4
16013-283-004 Float set |
16013-283-004 |
from US $21.74 |
||
|
5
|
5
16015-346-004
Chamber set,float
|
16015-346-004 |
— | ||
|
6
|
6
16016-375-004
Screw set(keihin)
|
16016-375-004 |
— | ||
|
7
|
7
16022-292-004
Piston set,vacuum
|
16022-292-004 |
— | ||
|
8
|
8
16025-375-004
Joint set,conn.
|
16025-375-004 |
— | ||
|
9
|
9
16048-375-004
Valve set,air cut
|
16048-375-004 |
— | ||
|
10
|
10
16101-375-014
Carburetor assy., r.
|
16101-375-014 |
— | ||
|
11
|
11
16102-375-014
Carburetor assy., l.
|
16102-375-014 |
— | ||
|
12
|
12
16139-292-004
Holder,needle jet
|
16139-292-004 |
— | ||
|
13
|
13
93500-030-070-A Screw, pan, 3x7 |
93500-030-070-A |
US $0.38 |
||
|
14
|
14
93500-040-080-A ScrewPAN, 4X8 |
93500-040-080-A |
from US $0.38 |
||
|
15
|
15
93500-040-120-A ScrewPAN, 4X12 |
93500-040-120-A |
from US $0.37 |
||
|
16
|
16
93500-050-100-A ScrewPAN, 5X10 |
93500-050-100-A |
from US $0.37 |
||
|
17
|
17
93500-050-160-A Screw |
93500-050-160-A |
from US $0.37 |
||
|
18
|
18
94111-03000 WasherSPRING, 3MM |
94111-03000 |
from US $0.38 |
||
|
19
|
19
94111-04000 WasherSPRING, 4MM |
94111-04000 |
from US $0.37 |
||
|
20
|
20
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
21
|
21
95001-350-0360M Bulk hose (3.5x3000) |
95001-350-0360M |
from US $13.99 |
||
|
22
|
22
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
23
|
23
99114-292-1400
Jet,main 140#
|
99114-292-1400 |
— | ||
|
23
|
23
99114-292-1450
Jet,main 145#
|
99114-292-1450 |
— | ||
|
23
|
23
99114-292-1500 Jet,main 150# |
99114-292-1500 |
US $4.95 |
||
|
24
|
24
99124-292-0350
Jet,main #35
|
99124-292-0350 |
— | ||
|
24
|
24
99124-292-0380
Jet,slow 38# std
|
99124-292-0380 |
— | ||
|
24
|
24
99124-292-0400
Jet,slow 40#
|
99124-292-0400 |
— | ||
|
25
|
25
99104-03504
Jet pilot #35
|
99104-03504 |
— | ||
|
25
|
25
99144-292-0380
Jet,pilot 38# std
|
99144-292-0380 |
— | ||
|
25
|
25
99144-292-0400
Jet,pilot 40#
|
99144-292-0400 |
— |
