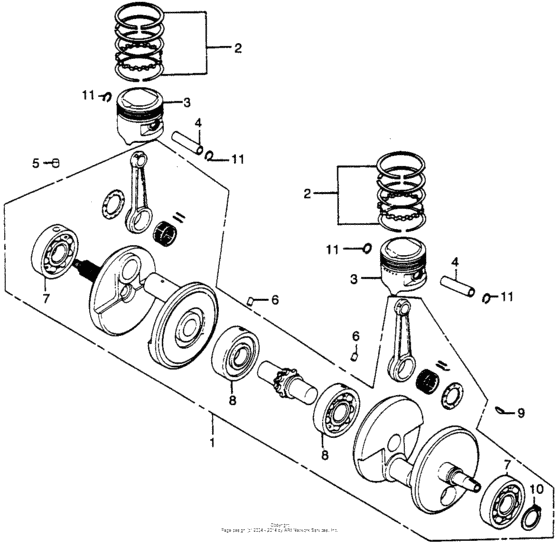

Crankshaft + piston Diagram Honda CB500 CB500
- Year
- 1976
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T2000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13000-375-000
Crankshaft
|
13000-375-000 |
— | ||
|
2
|
2
13011-375-005 Ring set (std) |
13011-375-005 |
US $125.31 |
||
|
2
|
2
13021-375-005
Ring set (os) (0.25)
|
13021-375-005 |
— | ||
|
2
|
2
13031-375-005
Ring set (os) (0.50)
|
13031-375-005 |
— | ||
|
2
|
2
13041-375-005
Ring set (os) (0.75)
|
13041-375-005 |
— | ||
|
2
|
2
13051-375-005
Ring set (1.00)
|
13051-375-005 |
— | ||
|
3
|
3
13101-375-003
Piston (std)
|
13101-375-003 |
— | ||
|
3
|
3
13102-375-003
Piston (os) (0.25)
|
13102-375-003 |
— | ||
|
3
|
3
13103-375-003
Piston (os) (0.50)
|
13103-375-003 |
— | ||
|
3
|
3
13104-375-003
Piston (0.75)
|
13104-375-003 |
— | ||
|
3
|
3
13105-375-003
Piston (1.00)
|
13105-375-003 |
— | ||
|
4
|
4
13111-283-000
Pin, piston
|
13111-283-000 |
— | ||
|
5
|
5
90708-375-000
Pin,knock,7x12
|
90708-375-000 |
— | ||
|
6
|
6
90709-375-000
Pin,knock,6x8.5
|
90709-375-000 |
— | ||
|
7
|
7
91001-356-003
B/brg rad n/com
|
91001-356-003 |
— | ||
|
8
|
8
91002-375-008
B/brg rad n/com
|
91002-375-008 |
— | ||
|
9
|
9
94401-25140 KeyWOODRUFF, 25X14 |
94401-25140 |
from US $0.86 |
||
|
10
|
10
94510-30000 CirclipEXTERNAL, 30MM |
94510-30000 |
from US $0.81 |
||
|
11
|
11
94601-17000 ClipPISTON PIN, 17MM |
94601-17000 |
from US $0.44 |
