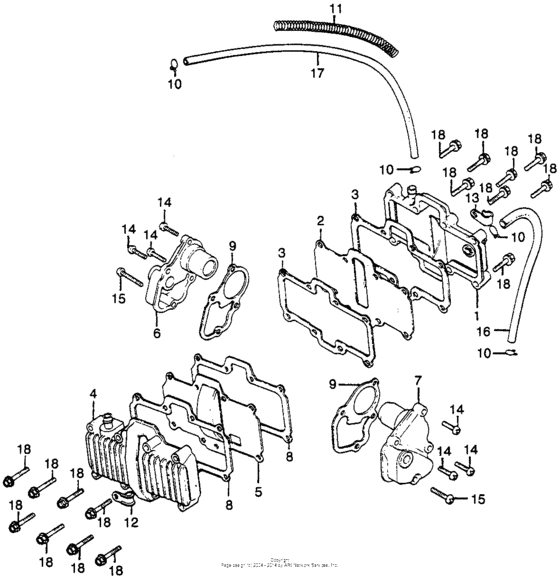

Cylinder head cover Diagram Honda CB500 CB500
- Year
- 1976
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T2000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12310-375-000
Cover, cyl hd
|
12310-375-000 |
— | ||
|
2
|
2
12315-375-000
Plate, in. bthr sep
|
12315-375-000 |
— | ||
|
3
|
3
12316-283-306
Gasket a, cyl hd
|
12316-283-306 |
— | ||
|
4
|
4
12320-375-000
Cover, cyl hd
|
12320-375-000 |
— | ||
|
5
|
5
12325-375-000
Plate, ex. bthr sep
|
12325-375-000 |
— | ||
|
6
|
6
12331-292-000 Cover, r. cyl hd |
12331-292-000 |
US $81.48 |
||
|
7
|
7
12341-292-000
Cover, l. cyl hd
|
12341-292-000 |
— | ||
|
8
|
8
12393-283-306
Gasket b, cover
|
12393-283-306 |
— | ||
|
9
|
9
12394-283-306
Gasket cover
|
12394-283-306 |
— | ||
|
10
|
10
15772-292-010 Clip, breather tube |
15772-292-010 |
from US $2.44 |
||
|
11
|
11
15773-356-000
Protector,breathr
|
15773-356-000 |
— | ||
|
12
|
12
32901-283-000
Clamp, point cord
|
32901-283-000 |
— | ||
|
13
|
13
45465-329-010
Clip,brakecable
|
45465-329-010 |
— | ||
|
14
|
14
93500-06022 Screw,pan 6x22 |
93500-06022 |
from US $0.52 |
||
| replacement | |||||
|
14
|
14
93500-060220A Screw, pan (6x22) |
93500-060220A |
from US $0.52 |
||
|
14
|
14
93500-060220A Screw, pan (6x22) |
93500-060220A |
from US $0.52 |
||
|
15
|
15
93500-060350A Screw, pan, 6x35 |
93500-060350A |
from US $0.52 |
||
|
16
|
16
95005-110-0130M Bulk hose (11x1000) |
95005-110-0130M |
from US $8.29 |
||
|
17
|
17
95005-110-0130M Bulk hose (11x1000) |
95005-110-0130M |
from US $8.29 |
||
|
18
|
18
95701-0603200 Bolt, flange, 6x32 |
95701-0603200 |
from US $0.59 |
||
