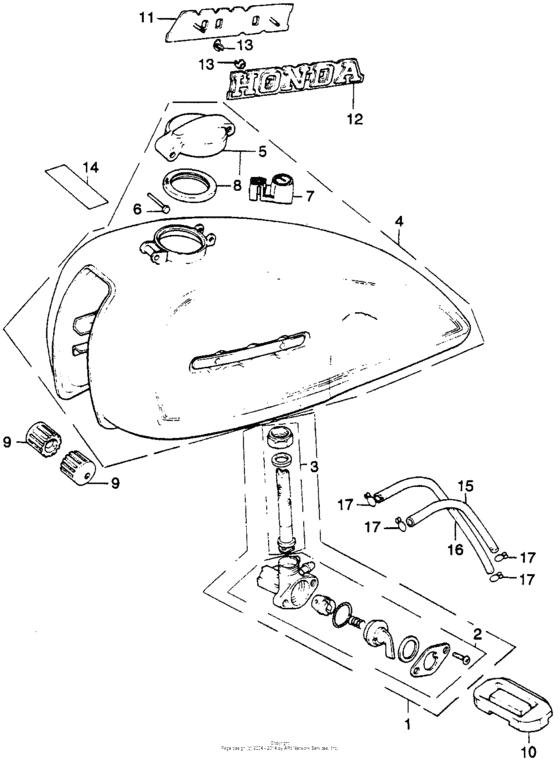

Fuel tank Diagram Honda CB500 CB500
- Year
- 1976
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T2000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-375-005
Cock.f,cb500.550t
|
16950-375-005 |
— | ||
|
2
|
2
16951-375-005
Body set,cock
|
16951-375-005 |
— | ||
|
3
|
3
16952-341-672
Strainer set,fuel
|
16952-341-672 |
— | ||
|
4
|
4
17050-375-770ZA
Tank, fuel *r6cs*
|
17050-375-770ZA |
— | ||
|
4
|
4
17050-375-770ZB
Tank, fuel *yr25m*
|
17050-375-770ZB |
— | ||
|
5
|
5
17510-323-310 Cap,fuel tank |
17510-323-310 |
US $68.29 |
||
|
6
|
6
17514-323-300
Pin b,fuel cap
|
17514-323-300 |
— | ||
|
7
|
7
17550-377-315 Check assy.,cap |
17550-377-315 |
US $68.68 |
||
|
8
|
8
17534-323-300 Packing,fuel cap |
17534-323-300 |
from US $11.37 |
||
|
9
|
9
17611-283-010 Cushion, tank |
17611-283-010 |
from US $10.15 |
||
|
10
|
10
17613-377-000 Cushion,tank rr |
17613-377-000 |
US $31.01 |
||
|
11
|
11
87121-375-000
Emblem,r tank
|
87121-375-000 |
— | ||
|
12
|
12
87122-375-000
Emblem,l tank
|
87122-375-000 |
— | ||
|
13
|
13
87311-516-000
Nut,rear ornament
|
87311-516-000 |
— | ||
| replacement | |||||
|
13
|
13
87311-634-600 Nut emblem |
87311-634-600 |
from US $2.59 |
||
|
13
|
13
87311-634-600 Nut emblem |
87311-634-600 |
from US $2.59 |
||
|
14
|
14
87560-375-680ZF Mark (type-w) Remember (Clear-white) |
87560-375-680ZF |
from US $5.77 |
||
|
15
|
15
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $23.04 |
||
|
16
|
16
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $23.04 |
||
|
17
|
17
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
