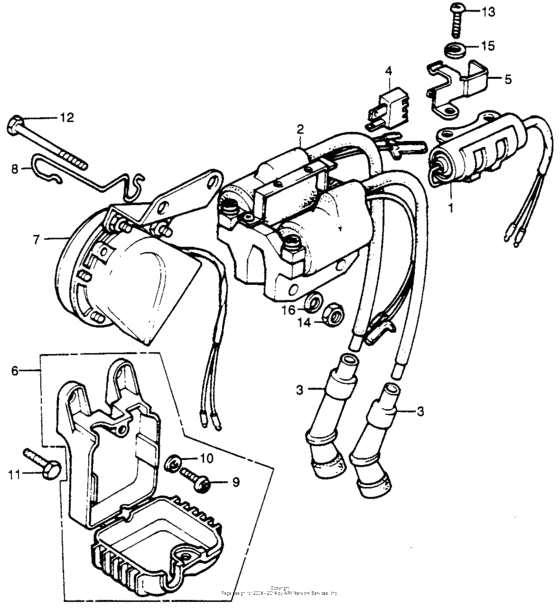

Ignition coil Diagram Honda CB500 CB500
- Year
- 1976
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T2000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
92000-06056-0A Bolt,hex., 6x56 |
92000-06056-0A |
US $0.59 |
||
|
1
|
1
30280-292-672
Condenser assy
|
30280-292-672 |
— | ||
|
2
|
2
30500-292-672
Coil ignition
|
30500-292-672 |
— | ||
|
3
|
3
30700-890-013
Cap assy., noise suppressor
|
30700-890-013 |
— | ||
|
4
|
4
31700-124-003
Rectifier assy., silicon (stanley)
|
31700-124-003 |
— | ||
| replacement | |||||
|
4
|
4
31700-124-008 Rectifier assy., silicon (shindengen) |
31700-124-008 |
from US $25.02 |
||
|
5
|
5
31706-369-000
Holder,diode
|
31706-369-000 |
— | ||
|
6
|
6
32400-375-000
Box,harness
|
32400-375-000 |
— | ||
|
7
|
7
38100-375-620
Horn assy
|
38100-375-620 |
— | ||
|
8
|
8
50402-351-000
Clip,tach.cable
|
50402-351-000 |
— | ||
|
9
|
9
90088-612-000
Pan,5x12 screw
|
90088-612-000 |
— | ||
|
10
|
10
90601-816-000
Clip,5mm
|
90601-816-000 |
— | ||
|
11
|
11
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
11
|
11
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
11
|
11
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
12
|
12
92101-06055-0A Bolt, hex. (6x55) |
92101-06055-0A |
from US $0.59 |
||
|
13
|
13
93500-050-080-A ScrewPAN, 5X8 |
93500-050-080-A |
from US $0.37 |
||
|
14
|
14
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
15
|
15
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
16
|
16
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
