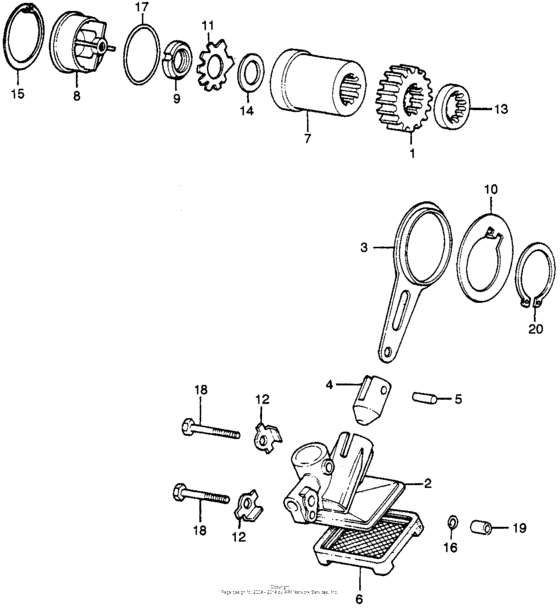

Oil filter + oil pump Diagram Honda CB500 CB500
- Year
- 1976
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T2000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13611-375-000
Gear,drive
|
13611-375-000 |
— | ||
|
2
|
2
15200-319-003
Pump assy,oil
|
15200-319-003 |
— | ||
|
3
|
3
15205-292-030 Rod,pump |
15205-292-030 |
US $35.36 |
||
|
4
|
4
15209-286-010
Plunger oil pump
|
15209-286-010 |
— | ||
|
5
|
5
15210-286-000
Pin pump plunger
|
15210-286-000 |
— | ||
|
6
|
6
15211-283-000
Screen, filter
|
15211-283-000 |
— | ||
|
7
|
7
15441-375-000
Rotor,oil filter
|
15441-375-000 |
— | ||
|
8
|
8
15450-292-040
Cap oil filter
|
15450-292-040 |
— | ||
|
9
|
9
90231-292-000 Nut,lock 16m/m |
90231-292-000 |
US $11.41 |
||
|
10
|
10
90404-292-000
Washer,pump rod
|
90404-292-000 |
— | ||
|
11
|
11
90431-292-000 Washer,lock 16m/m |
90431-292-000 |
from US $3.40 |
||
|
12
|
12
90433-283-000
Washer, lock, 6mm
|
90433-283-000 |
— | ||
|
13
|
13
90456-356-010
Washer a, 25mm
|
90456-356-010 |
— | ||
|
14
|
14
90481-292-000
Washer,filterlock
|
90481-292-000 |
— | ||
|
15
|
15
90604-292-000
Clip,cir 45m/m
|
90604-292-000 |
— | ||
|
16
|
16
91307-283-000 O ring, 8x1.5 |
91307-283-000 |
US $3.55 |
||
|
17
|
17
91309-286-000 O ring,41x2 |
91309-286-000 |
from US $6.46 |
||
|
18
|
18
92101-06028-0A Bolt, hex. (6x28) |
92101-06028-0A |
from US $0.51 |
||
|
19
|
19
9430108120 Pin a, dowel, 8x12 |
9430108120 |
from US $0.89 |
||
|
20
|
20
94511-34000
Circlip,34mm
|
94511-34000 |
— |
