Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
NI	NI 06430-390-405 Shoe kit, brake	06430-390-405	—
1	1 40543-390-000 Adjuster, chain	40543-390-000	US $22.38
	replacement
1	1 95014-18000 Adjuster j,chain	95014-18000	US $16.32
2	2 42313-292-000 Coller panel side	42313-292-000	—
3	3 43100-374-000 Panel, rr. brake	43100-374-000	—
4	4 43102-319-000 Washer, anchor pin	43102-319-000	from US $3.63
5	5 06430-390-405 Shoe kit, brake	06430-390-405	—
6	6 43141-374-000 Cam,rear brake	43141-374-000	—
7	7 43145-374-000 Plate,brake	43145-374-000	—
8	8 43151-346-000 Spring, rr.	43151-346-000	from US $5.37
9	9 43411-374-000 Arm,rear brake	43411-374-000	—
10	10 43434-286-000 Rubber	43434-286-000	from US $2.15
11	11 45134-250-000 Dust seal, brake cam	45134-250-000	from US $2.15
12	12 52136-375-000 Stopper,adjuster	52136-375-000	—
13	13 90119-283-000 Bolt, chain	90119-283-000	from US $11.25
14	14 90127-323-000 Bolt,rear brake	90127-323-000	—
15	15 90306-329-770 Nut, rr. wheel axle	90306-329-770	from US $6.81
16	16 90307-283-000 Nut, chain	90307-283-000	from US $3.18
17	17 90523-292-000 Washer,18.5x38	90523-292-000	—
18	18 90524-030-000 Washer a HANDLE HOLDER SETTING	90524-030-000	from US $2
19	19 92101-06020-0A Bolt HEX., 6X20	92101-06020-0A	from US $1.58
20	20 94001-080-000-S Nut HEX., 8MM	94001-080-000-S	from US $0.40
21	21 94201-25300 Pin, split, 2.5x30	94201-25300	from US $0.44
22	22 9420140300 Pin, split, 4.0x30	9420140300	from US $0.44
23	23 94251-08000 Pin LOCK, 8MM	94251-08000	from US $0.59

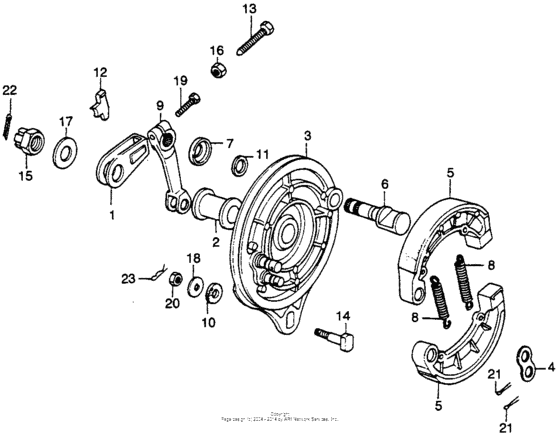

Rear brake Diagram Honda CB500 CB500 USA 13587684-786448
