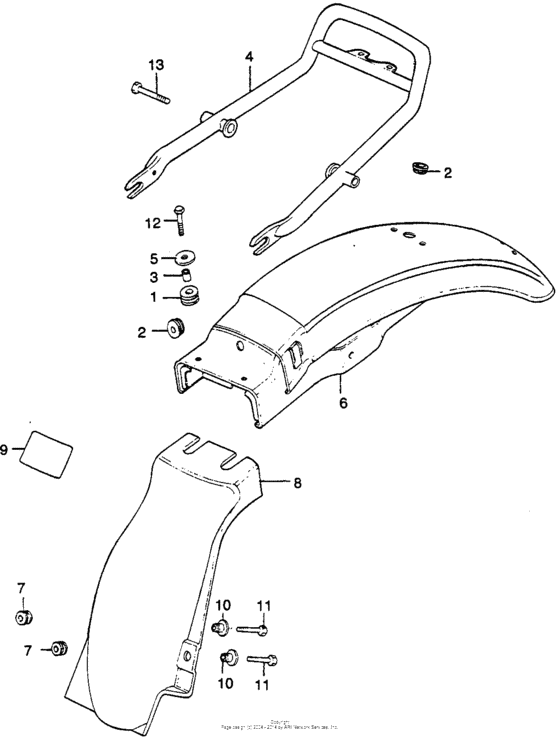

Rear fender Diagram Honda CB500 CB500
- Year
- 1976
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T2000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17245-107-010 Rubber |
17245-107-010 |
from US $2.23 |
||
|
2
|
2
32983-011-000 Grommet, harn |
32983-011-000 |
from US $2.81 |
||
|
3
|
3
33603-053-650 Collar,winkerstay |
33603-053-650 |
from US $2.34 |
||
|
4
|
4
50400-375-000
Pipe comp.,rear
|
50400-375-000 |
— | ||
|
5
|
5
77302-124-000 WasherSEAT MOUNTING |
77302-124-000 |
from US $2 |
||
|
6
|
6
80100-375-000
Fender a,rear
|
80100-375-000 |
— | ||
|
7
|
7
80105-061-000 Rubber a, rr. fender |
80105-061-000 |
from US $3.11 |
||
|
8
|
8
80105-375-000
Fender b,rear
|
80105-375-000 |
— | ||
|
9
|
9
87506-375-670
Mark,bat caution
|
87506-375-670 |
— | ||
|
10
|
10
90501-124-000 Washer, fr |
90501-124-000 |
from US $3.42 |
||
|
11
|
11
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
12
|
12
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
13
|
13
93000-080-450-B
Bolt,hex.,8x45
|
93000-080-450-B |
— |
